About
PMH M / MCF / MKF are fixed displacement motors for closed loop specifically designed to be used on heavy duty machines for traction and auxiliary functions, providing efficiency and durability.
HIGHER PERFORMANCE

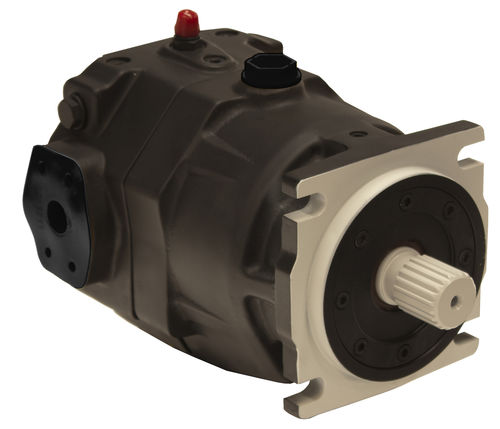

PMH M are flanged type motors designed for use on Mixer Trucks

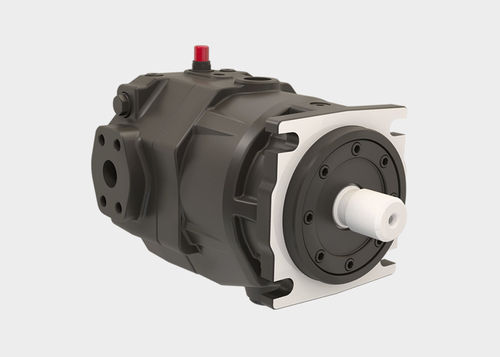

PMH MCF are flanged type motors

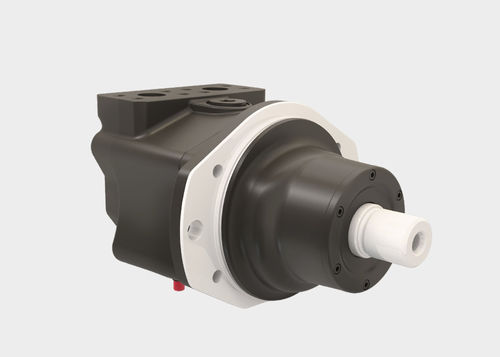

PMH MKF are plug-in type hydraulic motor
The geometry of the components is optimized to reduce wear and provide the most efficient oil flow.
Similarly the global structure of the motor is designed to handle extreme pressure and loads: this way efficiency is also maintained in high pressure working conditions
Highlight
500 bar pressure technology, i.e. extremely solid motors for the toughest applications and conditions.
All PMP motors offers integrated flushing valves for closed loop applications
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
axial piston
|
| Pressure |
500 bar (7,252 psi)
|
| Rotational speed (rpm) |
3000 - 4500
|
| Torque (Nm) |
|
| Displacement |
Min.: 33 cm³ (1.12 US fl oz)Max.: 110 cm³ (3.72 US fl oz)
|
