Axial piston motors are constant motors. They have a constant displacement and therefore generate a fixed rotation speed dependent on the flow rate.

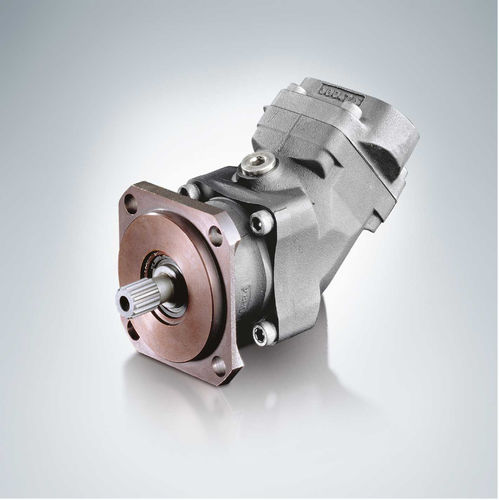

The axial piston motor type M60N is designed for open and closed circuits and operates based on the bent axis principle.

The motor is particularly suitable for usage in mobile applications.

Features and benefits:
Optimized power-to-weight ratio
Rotation speed
Different shaft and flange versions

Intended applications:
Machines for forestry and agricultural purposes
Fan drives
Construction machines
Municipal trucks

Parameter Name	Parameter Value
Technology	axial piston
Other characteristics	fixed-displacement bent-axis
Pressure	350 bar, 400 bar (5,076 psi)
Rotational speed (rpm)	2200 - 2200
Displacement	Min.: 13 cm³ (0.44 US fl oz)Max.: 108 cm³ (3.65 US fl oz)
