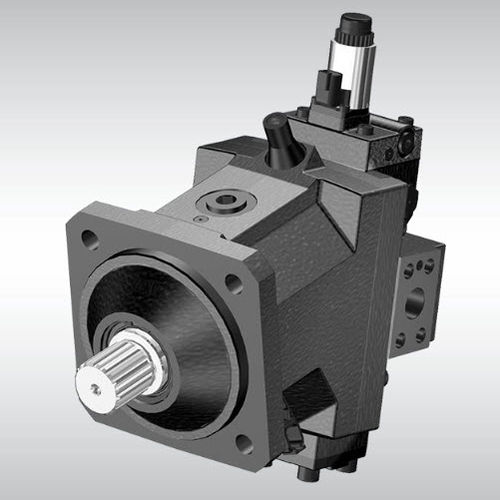

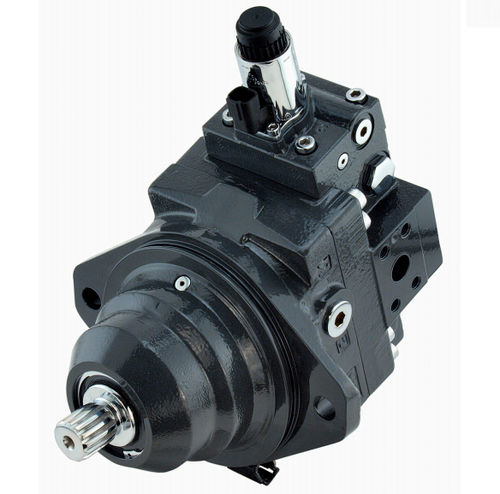

H1 bent axis motor
Your benefits
High speed capability: The optimized surface finish combined with a high spring rate and best-in-class components ensures your machines has with high speed capability at minimum angle, allowing for maximum performance

Shortest unit length on the market: The H1 Bent axis has the shortest unit lengths in its class

Quality: Integrating solely IP67 and IP69K rated electric components and fulfilling the quality goal of 250 DPM, the H1 Bent axis motor convinces with superior quality

Efficiency: The H1 Bent axis motor design, including smallest dead volume and flow optimized end cap as well as valve segment, leads to minimized control losses and enhanced efficiency

Robustness: One-piece housing and minimized case pressure ensure your machine operates with highest robustness. The strong synch joint improves dynamic torque capabilities

Maximized pressure: Balanced 450 bar delta pressure enables you to operate your machines at high power, increasing your effectiveness

Best serviceability: External shaft seal accessibility and built-in flexibility through the common design of the H1 family mean easy and quick replacement and convertibility, simplifying machine operation for you

Easy conversion: Each control supports all sizes of H1B motors to simplify motor conversion

Excellent service: Choosing Danfoss as your partner, you will profit not only from excellent service through our trained experts but also from short delivery times – to provide you what you need, when you need it

Parameter Name	Parameter Value
Technology	axial piston
Other characteristics	bent-axis variable-displacement
