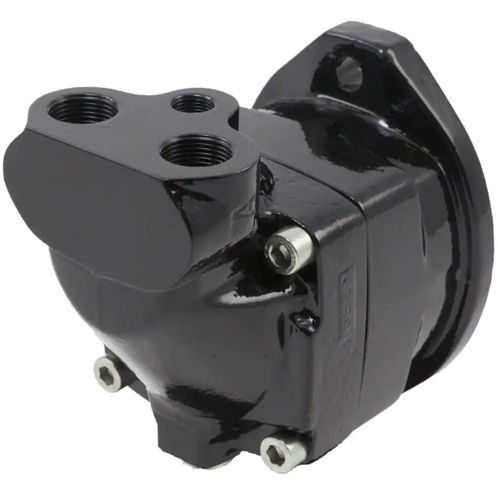

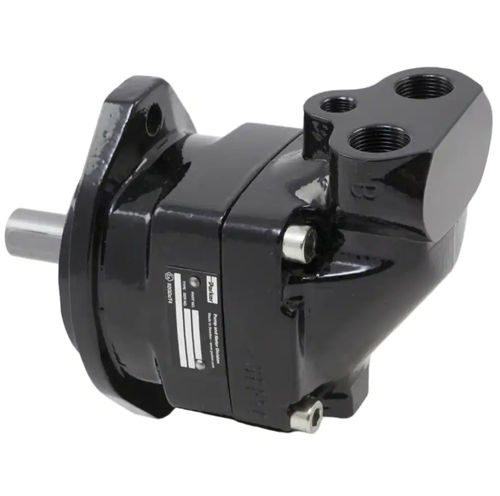

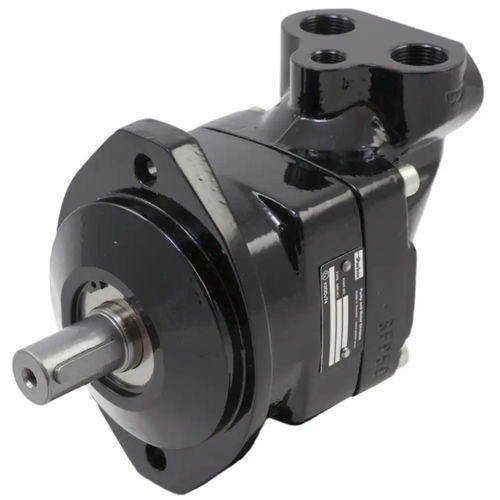

The high efficient Parker bent axis design motors, with unique spherical piston concept gives thermal shock résistance. The motors are rated up to 420bar pressure levels, and speeds up to 14000rpm. The well proven gear synchronization and double tapered bearing concept gives a very robust and reliable motor in demanding applications, applicable for both open and closed loop systems. Combined with our well proven track record of durable motors, we have an outstanding uptime. Sizes from 5-19cc Rigorous product testing and continuous product development help to ensure our hydraulic motors operate at optimum efficiency and can perform in the most demanding environments.

Markets:
• - Industrial
• - Energy
• - Government (Non Aerospace)
• - HVAC
• - Mobile
• - Natural Resources
• - Transportation (Non Aerospace)

Features/Benefits:
• - Gear synchronization - robust and reliable
• - High overall efficiency - reducing greenhouse gas émissions and fuel consumption.
• - Low noise level - meeting industry noise émissions.
• - Low weight - reducing greenhouse gas émissions and fuel consumption.
• - Laminated piston rings — low internai leakage, high overall efficiency
• - High speed capability - suitable for a variety of applications
• - Shaft end and mounting flange meet ISO, SAE and CETOP standards.
• - Small installation dimensions - fits wide range of applications.
• - Tolerates low and high temperature shocks — suitable for the most demanding environments.

Applications:
• - Agriculture Machinery
• - Construction Equipment
• - Forestry Equipment
• - Material Handling Equipment
• - Turf Equipment
• - Vocational & Municipal

Parameter Name	Parameter Value
Technology	axial piston spherical piston
Other characteristics	fixed-displacement industrial open circuit closed circuit high-speed
Pressure	420 bar (6,092 psi)
Rotational speed (rpm)	14000 - 14000
Displacement	Min.: 5 cm³ (0.17 US fl oz)Max.: 19 cm³ (0.64 US fl oz)
