Positioning system Witte TopPos:
Fast, accurate and economical to the contact point

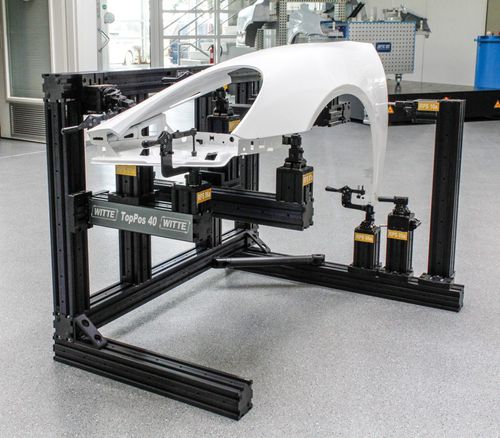

The TopPos modular positioning system extends Witte's range of high-end fixturing systems with a particularly flexible, economical and extremely accurate solution. It leads quickly, inexpensively and with repeatable accuracy to the goal: the perfect contact point.

With its reusable standard components, TopPos also implements complex clamping scenarios for which up to now special components often had to be designed and specially manufactured. The TopPos element assortment is one hundred percent standard and continuously reusable. This significantly reduces part and storage costs and ensures uncomplicated process sequences with noticeably shorter realization times.

The powerful 3D design software ALUFIX Expert from Witte comes with TopPos as a standard at no-extra charge.

significantly shortens processes
speeds up customization
reduces storage
eliminates specifically manufactured contour blocks
increases productivity
reduces costs
uses 100 percent standard parts
is fully reusable
profile dimensions 80 x 80 mm and 50 x 50 mm
standard profile lengths in 10, 25 and 40 mm increments
profile lengths from 40 to 1,000 mm available in 1-mm increments
profile lengths over 1,000 mm available in 40 mm increments
easy production of individual profile lengths with minimum effort
can also be used in combination with Alufix Classic / Eco
can also be used as a column type design with base plates and t-slot base plates
3D design software ALUFIX Expert as standard add-on

Parameter Name	Parameter Value
Features	automatic
Applications	industrial multi-function
