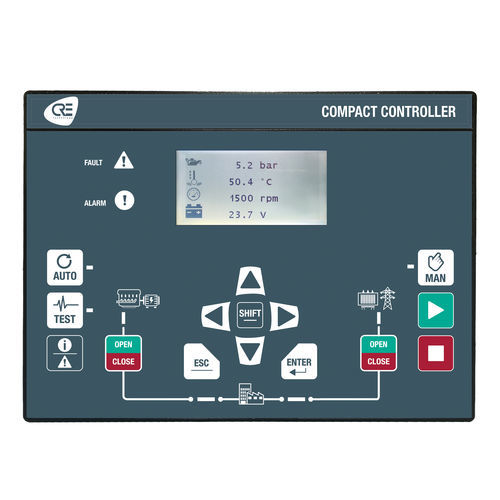

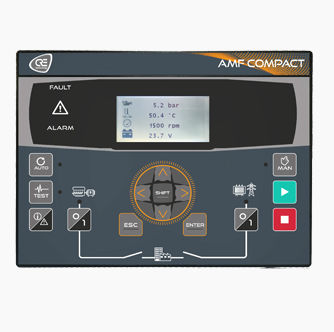

The AMF COMPACT is dedicated to a large variety of standby diesel or gas gensets, offering an automatic management of transfer switch on mains failure, as well as monitoring, control and protection of engine, alternator and power bus bars. AMF COMPACT range offers flexibility and time saving thanks to its simple wiring, all features included (no option), and easy engineering & programming.
Hardware & Display
AMF COMPACT is available in both switchboard panel mounted version with display, or core base mounted version. AMF COMPACT is also compatible with i4GEN touchscreen color display.
Software
AMF COMPACT range is configurable from its front panel display, remote touchscreen, or through our free PC software.
Control and management
Complete engine control of diesel, gasoline or gas gensets (preheating, pre-glow, ignition, start/stop…).
Alternative or consecutive multiple starter management.
Warmup & Cool down at idle or nominal speed.
Remote start and test mode available ON/OFF load.
Compatible with all J1939 electronic engines.
Mains failure detection and changeover with adjustable load transfer time.
Override mode (protections inhibition + dedicated hour meter) following NFE 37-312 certification.
Non-essential load control on overload.
Battery Boost management.
Configurable maintenance cycle.
2 password levels.

Parameter Name	Parameter Value
Other characteristics	digital automatic mains failure
