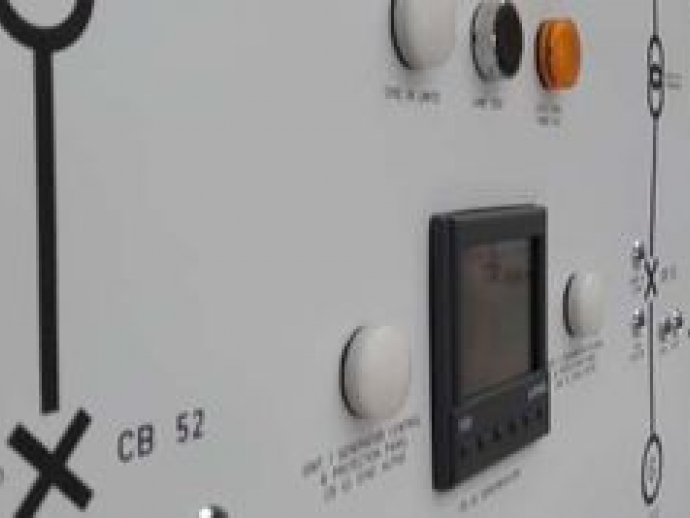

BRUSH is able to provide GCPPs equipped with all the necessary excitation control and protection equipment required to enable optimal performance of the generator or motor and various aspects of protection for an associated step up transformer.
Technical Specifications
•Excitation Controller / Automatic Voltage Regulator (AVR)
•Comprehensive Multi-Function Generator Protection Relay
•Various Options for Operator Console / Panel Mounted Human Machine Interface (HMI) / Panel PC
•Various Options for Communications (Modbus TCP, Ethernet Global Data, IEC61850, DNP3 etc.)
•Option for Integration of SCADA or Turbine Control Remote Telemetry Unit (RTU)
•Automatic Synchroniser and Check Synchroniser
•Dead Bus Close Interlocking
•Optional Manual Synchronising Scope and Controls
•Instrumentation Including Key Generator Parameters such as Excitation Amps, Voltage etc.
•Rotating Diode Failure Monitoring
•Rotor Ground Fault Alarm Indication
•Many Power Supply / Uninterruptable Feed Options Available

Parameter Name	Parameter Value
Other characteristics	automatic
