• 2 Gate Safety Control Module
• 24V ac/dc
• LED Diagnostics
• Dual Channel Output + Auxilliary
• Automatic / Manual-Monitored Reset

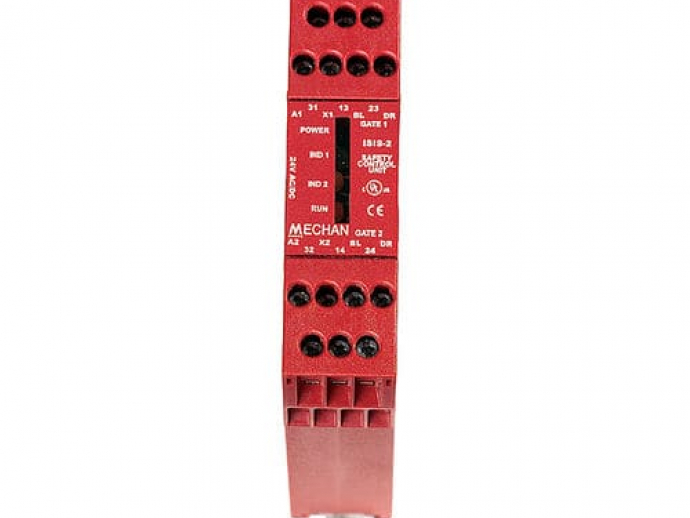

The ISIS-2 control unit is a 24V ac/dc system that can monitor up to 2 ISIS safety switches. The ISIS-2 has 2 normally open safety contact outputs and 1 normally closed auxiliary output, an external re-set/proving circuit and LED indication for ‘Power’, ‘Run’ and the status of each activated gate switch.
TECHNICAL SPECIFICATIONS
SUPPLY VOLTAGE OPTIONS - 24VAC/DC (+/- 15 %)
POWER CONSUMPTION - 3VA
SAFETY OUTPUT - 2 X NO
SAFETY OUTPUT RATING - 4A/230VAC; 2A/24VDC(RES.)@COS=1
AUXILLIARY OUTPUT - 1 X NC
AUXILLIARY OUTPUT RATING - 4A/230VAC; 2A/24VDC(RES.)@COS=1
CODING - SINGLE CODE, TAMPER RESISTANT
INPUT - UP TO 2 ISIS SWITCHES
RESET OPTIONS - AUTOMATIC OR MANUAL MONITORED
INDICATION - POWER & RUN LED'S + GUARD STATUS LED'S
DIMENSIONS OF CONTROL UNIT (MM) - 22.5 X 84 X 119MM
WEIGHT - NA
IP RATING - HOUSING IP40, TERMINALS IP20
CONSTRUCTION - RED POLYCARBONATE HOUSING AND TERMINALS
MOUNTING - 35MM DIN RAIL
ENVIRONMENTAL SPECIFICATIONS
OPERATING TEMPERATURE - -10°C TO 55°C
STORAGE TEMPERATURE - -20°C TO 60°C
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
automatic
|
