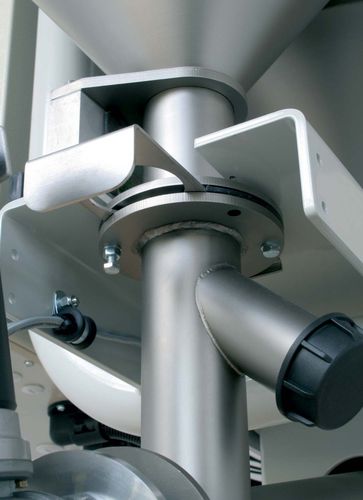

Continuous gravimetric multi-ingredient feeder, designed to blend pellets in extrusion processes which require precise and consistent blending. Unaffected by vibrations, COMPO has been designed to be easily mounted directly onto the extruder throat to replace the conventional feed hopper.

• COMPO is available in 12 models: 2, 3, 4, 5 or 6 ingredients, with throughputs of 150, 300, 600, 1000 up to 2000 kg/h.
• Inclined screw feeders to improve metering accuracy and to prevent undesired dribble. They are driven, with a wide range of speeds, by DC motors with long-life brushes and closed-loop speed regulation.

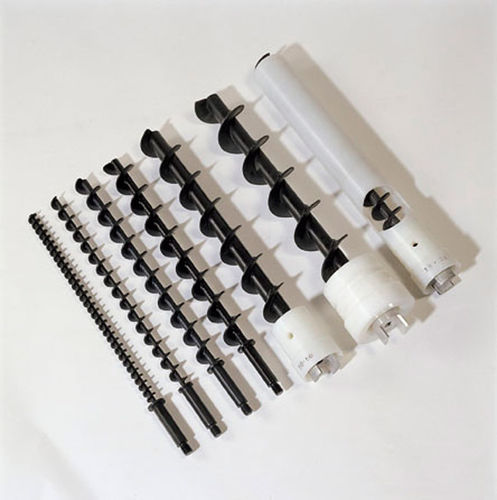

• Auger screws suitable for granules or free-flowing powders.

• All parts that come into contact with the ingredients are made of satin stainless steel, or of food-grade materials or finishes.

• The on-board control box does not require any floor space.

• Standard supplied integrated refill valve, slide gate type.

• Easily accessible auger screws for quick and thorough cleaning, no tools required.
• Reduced installation costs. Complete wiring of the dosing unit is carried out by the manufacturer.

• Drain spout for easy and quick hopper emptying.

Parameter Name	Parameter Value
Type	auger gravimetric worm screw
Operating mode	continuous
Product applications	for bulk materials powder for pellets for granulates
Other characteristics	high-precision
