General description：

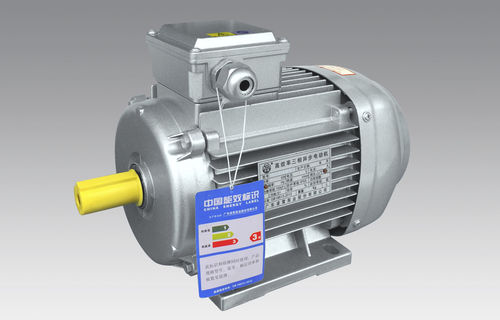

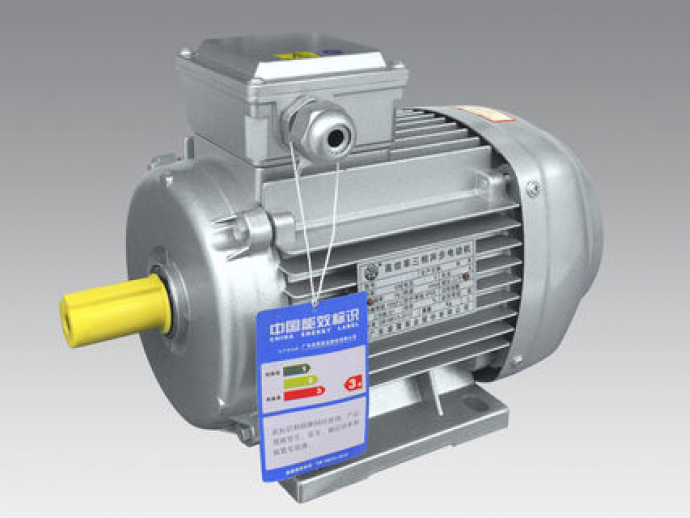

The high efficiency of YE2 serie electric motor are not only conformity to grade 3 efficiency value of standard GB18613-2012 and IE2 of IEC60034-30 standard,but also the efficiency grade and in stallation dimensions are totally conformity to IEC standard.There are square motor shape and round motor shape for selection.
-Factor:S1(continious duty)
-Insulation:F
-Cooling:IC411
-Mount type:B3/B35
-Electic connetions:motor with power≤3kW for Y connection;≥4kW for△connection.
Applications conditions：
-Altitude:≤1000m

Parameter Name	Parameter Value
Type	asynchronous
Protection class	IP55
Other characteristics	IE2
Power (W)	370 - 7500
Intensity (A)	1 - 15.5
Rotational speed (rpm)	1450 - 1450
Operating temperature (°C)	-15 - 40
