• Wall or motor mounting
• Surface treatment (nsd tupH)

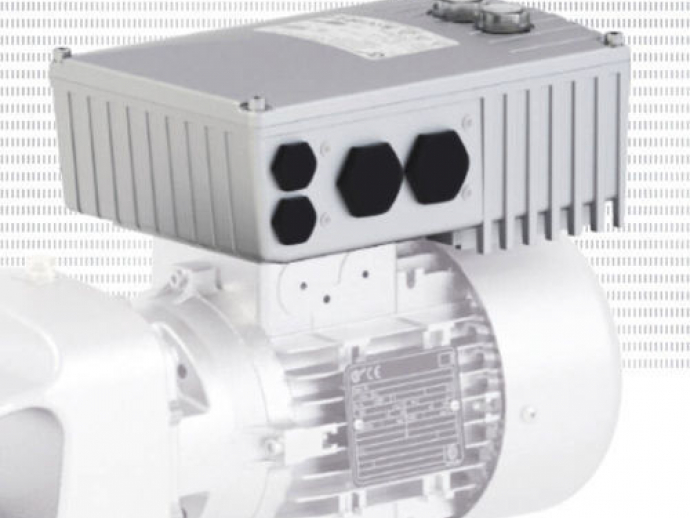

The NORDAC START electronic motor starter is a decentralised wear-free electronic motor starter for all soft start applications. It is equipped with a reversing function and internal motor protection and can therefore be flexibly integrated into any system.

Versions
• 3-phase 200 - 240 V, 3-phase 380 - 500 V
• Protection class: IP55, IP66, IP69K
• Motor-mounted, wall-mounted

Charateristics
• 2x Digital In, 2x Digital Out
• Parameterisation via plug-in control module, NORDCON software tool or app
• Reversing function
• Drive monitoring function including motor monitoring and motor thermistor evaluation
• Motor brake management
• Integrated line filter
• Asynchronous motor operation

Parameter Name	Parameter Value
Type	asynchronous motor
Technology	electronic
Electrical characteristics	three-phase low-voltage
Other characteristics	compact control economical with reversing function decentralized energy-saving with integrated injection brake
Power (W)	250 - 7500
