Subsea Motors
Deepwater fluid-filled subsea motors for critical pumping in the harshest offshore environments. Industry leading high power and voltage designs.

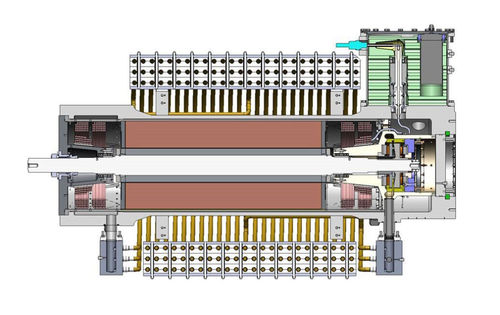

Design Features of Hayward Tyler Subsea Motors
Our deepwater subsea motors are built to the highest standards to provide exceptional performance and reliability at depths up to 3000m. Our engineered designs offer proven 8-year service intervals and have the following key features:

Qualified subsea penetrator for ROV connection
Wet-wound, water/glycol filled motor
Enclosed to IP68
Independently qualified cable jointing method
Internal pressure compensator provides positive motor pressure
8+ year service intervals
Latest T3 product lubricated bearings (radial and thrust)
Integral thrust bearing/aux. impeller for improved cooling
Condition monitoring packages available


Applications
Hayward Tyler Subsea Motors are ideal for the following applications:

Seawater Injection
Multi-Phase Boosting
Crude Oil Boosting
Produced Water Re-Injection
Deepwater Power Solutions

Parameter Name	Parameter Value
Type	asynchronous
Voltage (V)	10000 - 10000
Power (W)	0 - 0
Rotational speed (rpm)	0 - 6000
