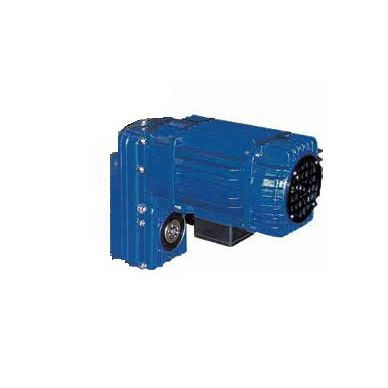

“DGP” series offset geared motors
The reducers are designed as an “Offset geared motor type” with a concave shaft, featuring parallel axes with two or three stages of reduction, and in a permanent oil-bath lubrication.
Engineered with cylindrical high resistance steel gears, featuring spiral toothing, thermically treated, entirely supported on ball bearings.
The electric motors are asynchronous, featuring a progressive start-up, with a standard ventilation, self-braking with axial shifting of the rotor guaranteeing a fast, reliable mechanical braking.
Electrical power 400 V - 50 Hz.
Protection of electrical parts:
IP55 Motor
IP23 Brake
Class “F” insulation Motor
IP65 Limit switch; max insulation voltage 500 V
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Motor type |
asynchronous
|
| Type |
cylindrical
|
| Shaft orientation |
parallel-shaft
|
| Product applications |

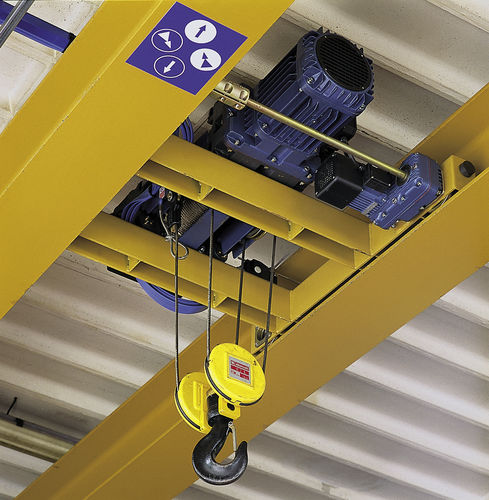

for lifting applications
|
| Other characteristics |
shaft-mounted
|
