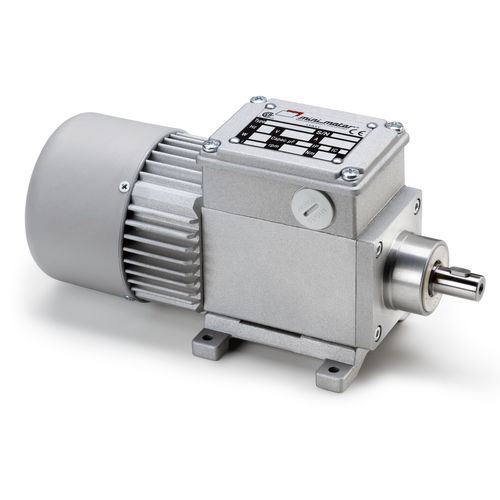

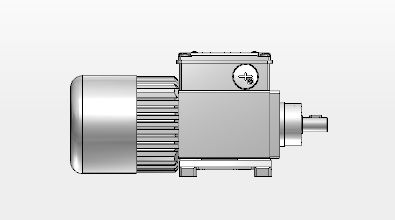

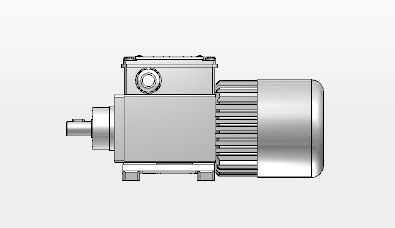

Asynchronous gear-motor AC series

Asynchronous gear-motor AC series

Asynchronous gear-motor AC series

About


MOTOR: asynchronous single or three phase with 2 or 4 poles, totally enclosed, with external ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.

GEAR UNIT: with casing in die-cast aluminium. Case-hardened and hardened gear pairs with shafts rotating on roller bearings. Lubrication with long-life oil. Sealing rings made in special rubber for high temperatures.
15 gear ratios (i) available, from 7.4 to 441.9. Rated torque 5 Nm. Version B3 or B5.



PARAMETERS

Parameter Name Parameter Value
Motor type
  • three-phase
  • single-phase
  • asynchronous
Type
epicyclic
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Power (W)
  • 10 - 50
  • 50 - 100
Voltage (V)
220 - 220
Torque (Nm)
1 - 5
Other characteristics
  • 4-pole
  • IP65
Gear ratio (unit)
7.4 - 441.9
