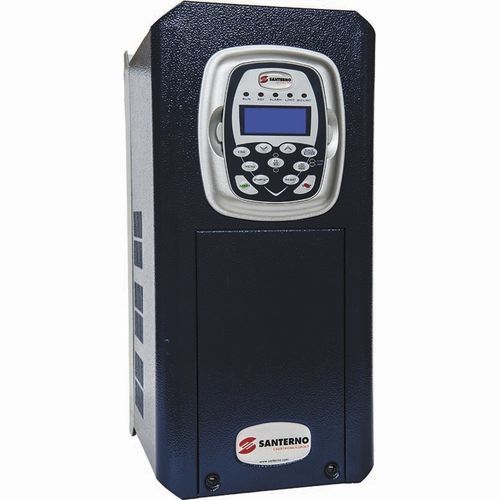

Drives controlling three-phase asynchronous motors, specifically designed for water treatment, fans and compressors

Energy efficiency, robustness, custom solutions and a complete range of accessories to obtain reliable and performing systems: these are the strong points of the IRIS BLUE drives fitting HVAC and WATER TREATMENT applications, COMPRESSORS and FANS.

The drives of the IRIS BLUE series come with two speed control modes for three-phase asynchronous motors: V/f and VTC (Vector Torque Control). Those control modes are user-selectable and ensure optimum performance in terms of accuracy and energy saving for each specific industrial application.

Main features
– Keypad remoting kit
– IP21 kit
– Three-phase input inductors
– Output inductors (DU/DT filters)
– Sine filters
– Through-panel assembly kit for the separation of the air flow for power section cooling
– Output ferrites
– Custom cabinet

The maximum efficiency in controlling pumps, fans and compressors
– Integrated control methods: V/f, Vector Torque Control
– Fully made of steel
– User-friendly: easy navigation menus and parameters preconfigured for the most common applications
– Wide range of operating temperature with no derating: -10°C to 55°C
– Tropicalized boards (conformal coating)
– Overload up to 120% for 1 minute every 10 minutes or 2 minutes every 20 minutes (depending on the drive model)
– Peak current up to 144% for 3 seconds

Parameter Name	Parameter Value
Type	three-phase asynchronous Modbus
Mounting	DIN rail
Applications	HVAC for compressors for industrial applications for water treatment fan for motors
Protection class	IP20 IP54 IP21
Other characteristics	Ethernet torque control with speed control Modbus PROFIBUS CANopen EtherCAT for motors
Power (W)	3000 - 300000
Intensity (A)	9 - 560
