At a glance

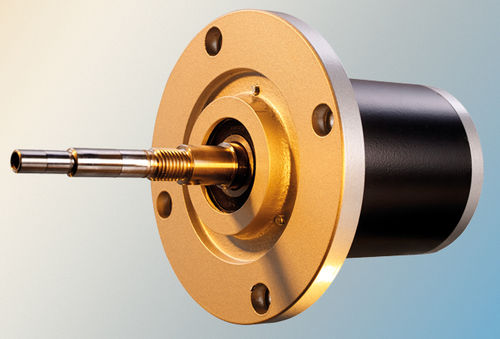

hamotlc pro:
Drives with housing in synchronous and asynchronous technology
Application fields:
Textile machines, corveyor belts, vacuum and fluid pumps, logistics and more
Advantage/beneflt:
Rugged design with protective enclosure
Technical specifications:
Size 56-132, Output 0.09-7.5 kW.
Speed 1,000-25,000 min ',
Protection rating IP54/IP55
Options:
Base and flange mounted versions, special armature and end shields, external fan, brake, position transducer, protective ccver and more
hamotic pro motors are incredibly versatile. On the one hand, the design and the geometry can be optimally adapted to the operating conditions. On the other hand, the customer specific housings also protect the drive units. The use of extruded sections during production has proven to be very advantageous here: With manageable tool costs, the length and geometry of the housing can be varied in a flexible manner. Die-cast aluminium housings are a great alternative for especially high demands.
In any case, the hamotic pro offers optimum quality at economically attractive conditions.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Mounting |
with housing
|
| Applications |
|
| Protection class |
|
| Power (W) |
|
