About

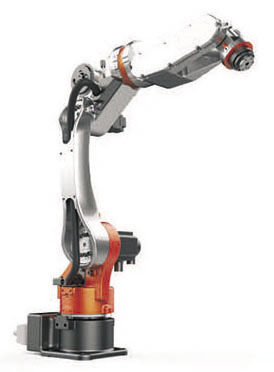

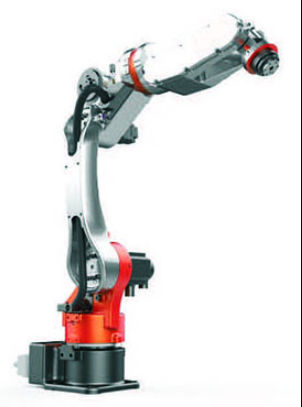

An enhanced, compact mechanical construction allows the highest payload 10kg,the longest reach 1400mm.
It is the perfect solution for high productivity handling, loading & unloading and assembly applications.
Additionally, it uses 4pcs RV reduction gears and 2pcs of harmonic reducers, more stronger rigidity.
Also it uses bigger RV reduction gear RV-50C in the bottom of robot, its carrying capacity, torque and speed ratio all are more bigger, equivalently 20KG configuration.
For the harmonic drivers of the 5th axis and 6th axis of robot, it uses double steel wheels for the purpose of higher rigid and greater torque.
This is a high configuration 6 axis industrial robots.
Application - Arc welding, Palletizing, Loading and unloading
Installation - Ground, lifting, hanging
Electric cabinet - 26KG
Input power - 3P AC220V 50Hz
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
articulated
|
| Number of axes |
6-axis
|
| Function |
|
| Other characteristics |
compact
|
| Payload (kg) |
10 - 10
|
| Reach (mm) |
1400 - 1400
|
| Repeatability (mm) |
0.07 - 0.07
|
| Operating temperature (°C) |
0 - 45
|
| Weight (kg) |
185
|
