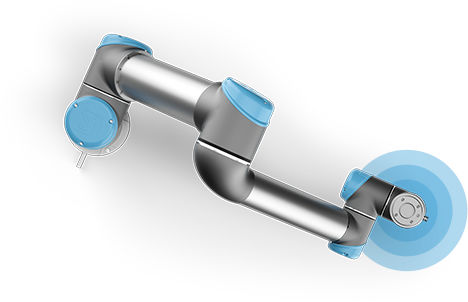

The UR3e is the smallest industrial collaborative robot arm in our portfolio. Benefit from its compact form when automating processes in tight workspaces, such as on bench-tops or within production machinery.
Down to the smallest detail

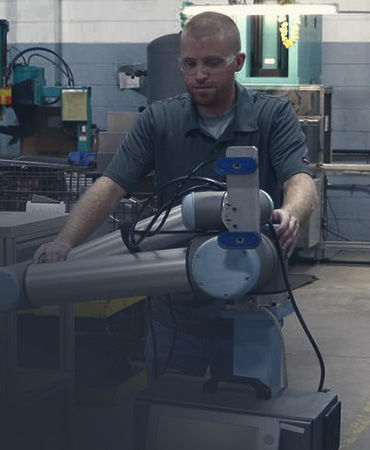

Due to its small size, the UR3e is the ideal definition of a collaborative, industrial robot. Designed to optimize efficiency in confined workspaces, the UR3e offers unmatched flexibility and precision. While the cobot can be mounted on a table working side-by-side with employees, it can also be integrated within a separate workstation for solutions including picking, assembling, and placing parts.

With its small footprint and lightweight design, the UR3e seamlessly integrates into any production environment, complementing human workers and maximizing productivity. This cobot is equipped with cutting-edge safety features, ensuring safe collaboration between humans and machines.

Enhance your operations, improve quality, and stay ahead of the competition with this compact automation solution.

Empowering

Don't be fooled by its size – the UR3e offers high-end performance just like our other cobots. Its precise movements and high repeatability allow for delicate and intricate tasks.

Agile

Create new solutions, re-use programs for recurrent tasks and move the cobot to new processes if required.

Employee-support

Give your employees the freedom to focus on what they are best at and leave the rest to the cobot.

Parameter Name	Parameter Value
Type	articulated collaborative
Number of axes	6-axis
Function	for assembly pick-and-place painting for production soldering
Mounting	floor-mounted benchtop
Application domain	for the electronics industry for the pharmaceutical industry for medical applications laboratory
Protection level	IP54
Other characteristics	compact high-precision OEM
Payload (kg)	3 - 3
Reach (mm)	500 - 500
Operating temperature (°C)	0 - 50
Weight (kg)	11.2
