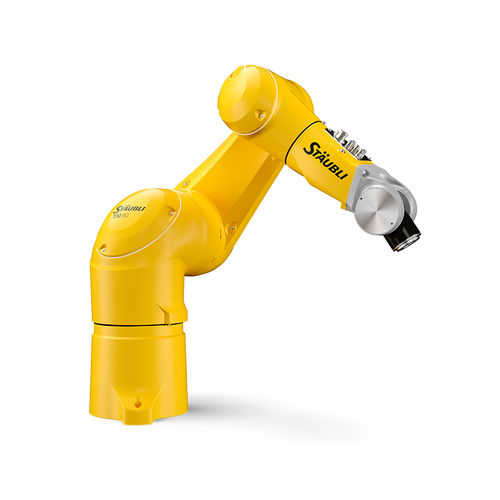

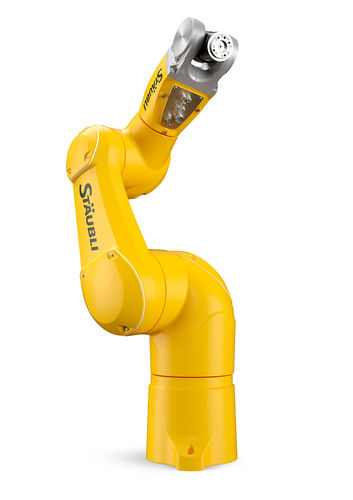

Our fast and precise TX2 industrial robots are the next generation of 6-axis robotic arms. This line of robots provides the ideal combination of speed, rigidity, size and precision. These robots have unique features that make them adaptable to all industries, including sensitive environments.
Optional SIL3-PLe safety functionalities allow high productivity while ensuring Man-Machine collaboration.

The TX2-90 range has a payload of up to 20 kg with a maximum reach of 1450 mm.

MAIN FEATURES AND BENEFITS
Smart design
* Hygienic encapsulated 6-axis arm enabled by hollow shaft drives, no external cables
* Compatible with all environments, from harsh and dirty to sterile
* Protection and additional installation options available
* IP65/67 for the entire arm with pressurization kit

Integration flexibility, modular and scalable
* 360°mounting possibility for flexible integration
* Large and efficient spherical working range
* Integrated electrical and pneumatic user circuit including Cat5e
* Sealed vertical cable option bringing additional and smart integration options

High performance kinematics
* Over 125 years of experience in fast moving technology
* Light and rigid structure
* Patented JCS smart gearbox specially designed for compact robots
* Compatible with NSF H1 food oil with no loss in performance

Parameter Name	Parameter Value
Type	articulated collaborative
Number of axes	6-axis
Mounting	floor-mounted ceiling-mount
Other characteristics	high-speed high-precision
Payload (kg)	14 - 14
Reach (mm)	1000 - 1000
Repeatability (mm)	0.03 - 0.03
Weight (kg)	114
