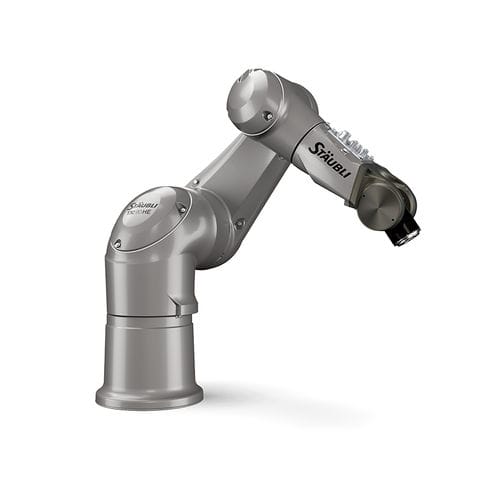

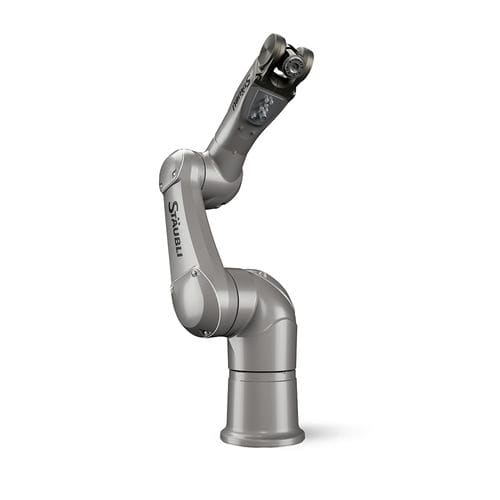

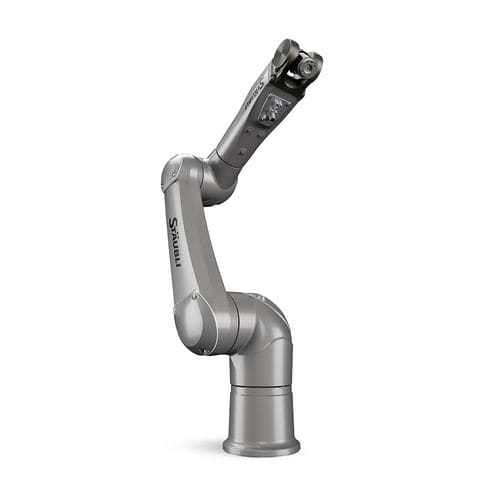

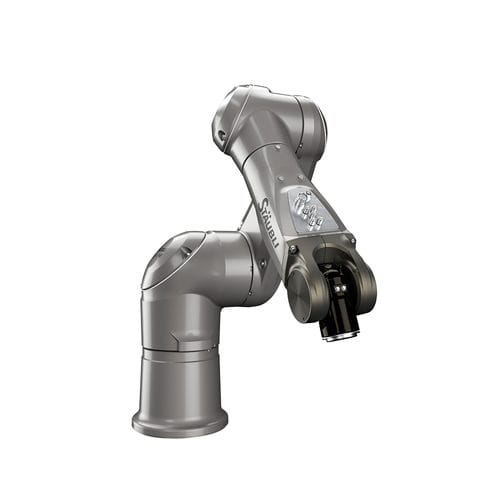

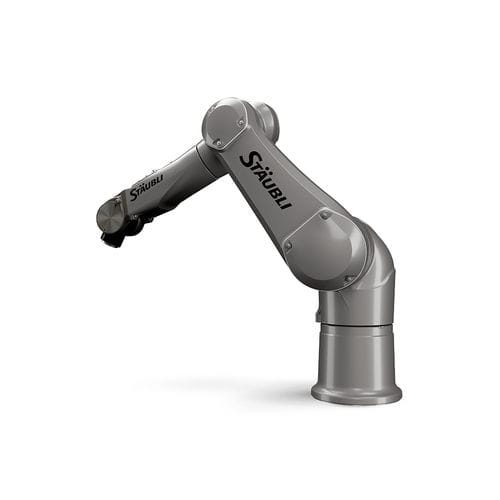

The TX2-90 HE robot is part of the “Humid Environment” line developed specifically for processes in wet environments. The TX2-90 HE has been designed to resist corrosion even under extreme conditions. It can be used in very humid environments for applications such as water jet cutting, machine tool loading/unloading, and various food operations.

Stands up to extreme conditions
HE robots are designed to operate under extreme conditions thanks to their special stainless steel casing and screws.

Compatible with the latest washing solutions
HE robots are all compatible with the latest washing solutions and can operate in environments with a pH ranging from 4.5 to 8.5.

No liquid retention areas or corrosion
The design of the HE robot arm meets EHEDG recommendations. Connections are integrated into the robot body and all equipments are washable: surfaces are smooth and rounded to facilitate water runoff.

Sensitive environments
In HE robots the cable outlet is located under the base for optimal protection of connections in sensitive environments.

Parameter Name	Parameter Value
Type	articulated
Number of axes	6-axis
Function	handling packaging loading unloading cutting
Mounting	floor-mounted ceiling-mount wall-mounted
Application domain	for the food industry for the beverage industry for wet environments
Other characteristics	waterproof
Payload (kg)	7 - 14
Reach (mm)	1000 - 1450
Repeatability (mm)	0.03 - 0.04
