Shibaura Machine's vertical articulated robot TVM series achieves high inertia and strong payload capabilities up to 20 kg, while at the same time the robot body has a reduced weight.

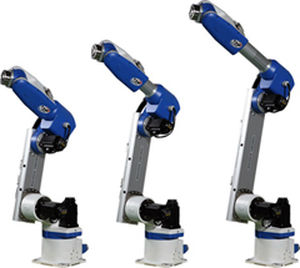

In addition to three variations in arm lengths, the operating range can be further expanded by mounting the robot on an optional linear actuator.
The Robot TVM series, in combination with its function-rich controller and software solutions such as programming-support PC software and 3D vision bin-picking package, is applicable to a wide range of automation needs and contribute to efficiency, and cost and labor saving.

Parameter Name	Parameter Value
Type	articulated
Number of axes	6-axis
Function	loading
Protection level	IP65
Payload (kg)	20 - 20
Reach (mm)	900 - 1200
Repeatability (mm)	0.05 - 0.05
