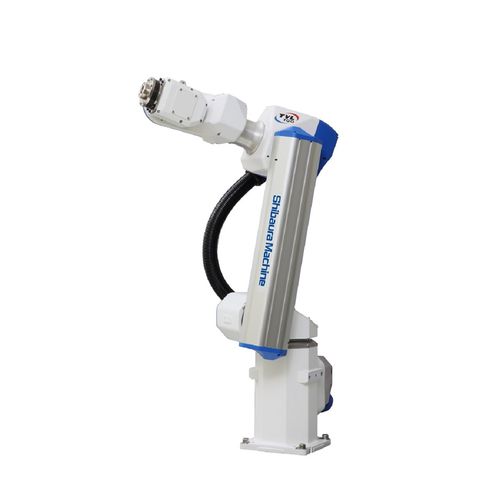

The TVL700 Six-Axis Robot with a reach of 700mm and a payload of 4kg really packs a punch as it delivers a high speed, highly accurate, energy saving performance at a low cost.

This brand new light weight, compact vertically articulated Six-Axis Robot offers high performance and productivity on all assembly and pick-and-place applications, yet because of its compact size, it also saves on space delivering all of the functionality that you would insist on from a Six-Axis Robot, but with a fraction of the expected foot-print within your production line.

Features and benefits
- 6-Axis Vertically articulated arms
- Ideal for machine loading/unloading and assembly applications

*1: Speed and acceleration are limited depending on motion patterns, payload mass, and offset value.
*2: Continuous operation of standard cycle motion pattern is not possible beyond the effective load ratio.
(Horizontal 300 mm, vertical 25 mm, round-trip, coarse positioning)
*3: One way positioning repeatability when the environment temperature is constant at 20 degrees Celsius. Absolute position accuracy is not ensured.
*4: Painting color may vary depending on the production lot. It does not affect the quality of the product.

Parameter Name	Parameter Value
Type	articulated
Number of axes	6-axis
Function	for assembly pick-and-place loading unloading for production
Mounting	floor-mounted ceiling-mount
Application domain	for the food industry for the electronics industry for the pharmaceutical industry for the plastics industry
Other characteristics	compact high-speed
Payload (kg)	4 - 4
Reach (mm)	700 - 801
Repeatability (mm)	0.03 - 0.03
Speed (mm/s)	7700 - 7700
Weight (kg)	31
Length (mm)	300 - 700
