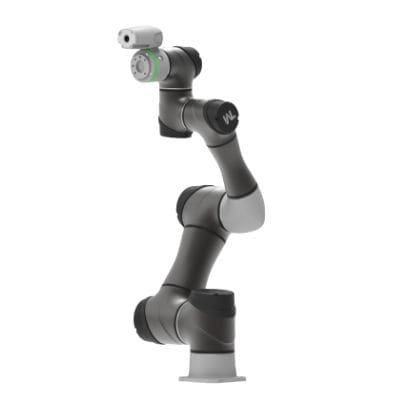

TM7S is a regular payload cobot from TM AI Cobot S series. Enhanced your production efficiency and reduce the cycle time of your production line. It finds wide applications in various tasks such as 3D bin picking, assembly, labeling, pick & place, PCB handling, polishing & deburring, quality inspection, screw driving and more.
Upgrade to a New Level of Possibilities
Faster
More Precise
Flexible
More Safety Items
Intelligence Amplified, Customization Redefined
AI
Vision
TMflow 2
TMcraft
FASTER
25% faster cycle time!
• The joint speed of the 6th axis is increased from 225 °/s to 450 °/s
• Reduces the cycle time of your production line by 25%* for improved efficiency
MORE PRECISE
Best cobot repeatability of ±0.03 mm!
• Delivers up to a 70%* increase in repeatability accuracy of ±0.03 mm
Brand New Robot Stick
The enhanced Robot Stick with a 3-position Enabling Switch and RESET button for easier and safer operation. Use it alone to control the robot with monitor, keyboard and mouse.
Attachable TM Screen
Experience versatility in teaching, debugging, and control by combining the Robot Stick with an optional TM Screen. Seamlessly tackle on-site debugging and unlock a wide range of capabilities with this powerful combination.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
articulated
|
| Number of axes |
6-axis
|
| Function |
|
| Protection level |
IP54
|
| Payload (kg) |
7 - 7
|
| Reach (mm) |
700 - 700
|
| Repeatability (mm) |
0.03 - 0.03
|
| Speed (mm/s) |
4000 - 4000
|
| Operating temperature (°C) |
0 - 50
|
| Weight (kg) |
22.9
|
