About

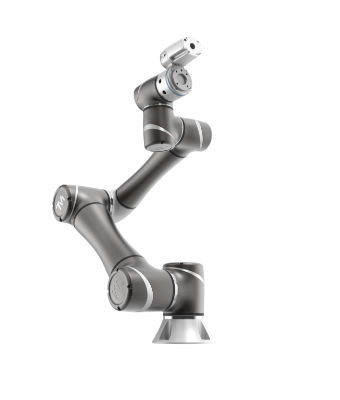

The TM5-900 has the ability to “see” with an integrated vision that tackles assembly automation and inspection tasks with maximum flexibility. Our collaborative robot can work with humans and share the same tasks, without compromising productivity or safety. It can give the highest level of precision and efficiency while being in the same workspace. The TM5-900 is ideal for the electronics, automobile, and food industries.
Future-proof Your Cobot with AI
Benefits of AI Vision
• Automated optical inspection (AOI)
• Quality assurance & consistency
• Increase production efficiency
• Reduce operating costs
AI-powered cobots recognize the presence and orientation of their environment and parts to perform visual inspections and dynamic pick-and-place tasks. Effortlessly apply AI to the production line and increase productivity, decrease costs, and shorten cycle times. AI vision can also read results from machines or test equipment and make appropriate decisions accordingly.
Besides improving automation processes, an AI-driven cobot can track, analyze, and integrate data during production to prevent defects and improve product quality. Easily enhance your factory automation with a complete set of AI technology.
A True Vision Leader
Our collaborative robots are equipped with an integrated vision system, giving cobots the ability to perceive their surroundings which significantly enhances cobot capabilities. Robot vision or the ability to “see” and interpret visual data into command prompts is one of the features that makes us superior. It is a game-changer for accurately performing tasks in dynamic changing workspaces
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Number of axes |
6-axis
|
| Function |
|
| Application domain |
|
| Protection level |
IP54
|
| Other characteristics |
safety
|
| Payload (kg) |
4 - 4
|
| Reach (mm) |
900 - 900
|
| Repeatability (mm) |
0.05 - 0.05
|
| Speed (mm/s) |
1400 - 1400
|
| Operating temperature (°C) |
0 - 50
|
| Weight (kg) |
22.6
|
