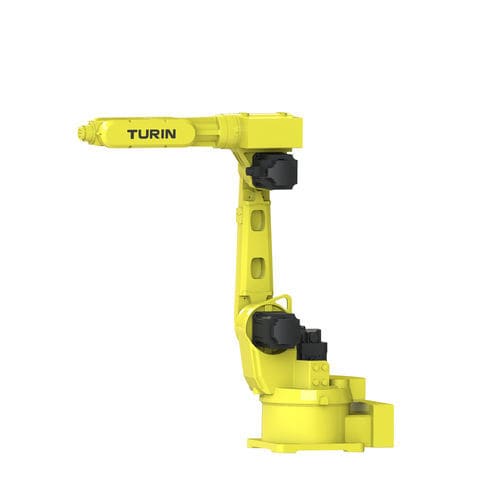

Articulated robot TKB1600S/E

About


TKB1600 industrial robot with lightweight design, compact structure, large operating space, fast dynamic response, stable and reliable performance. The product is easy to install, small footprint, to meet the needs of flexible production, can be quickly put into production, improve production efficiency.

Flexible installation method:

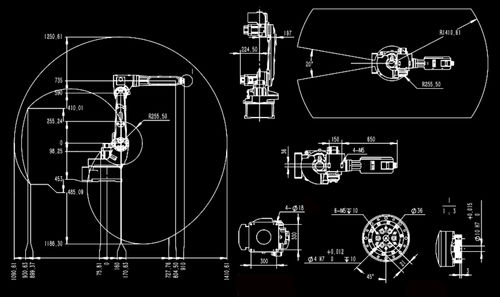

TKB1600 payload 12 kg, reaching a distance of 1412mm, highly compact design, can be flexibly choose to install or upside down installation is conducive to shortening the takt time and broaden the range of applications.

Excellent price / performance ratio

Product structure design rigorous, the key components are from first-class suppliers, superior product performance. Superior acceleration and deceleration performance, help to shorten the working time, improve production efficiency.

High-end configuration:

The robot's core components are all imported brands (reducer: 1/2/3 axis, Japan's Nabtesco; 4/5/6 axis Japan's new treasure. Servo Drive: South Korea LS. Drive Motor: 1/2/3 Axis, South Korea LS; 4/5/6 axis, Japan Tamagawa), and the use of the most advanced EtherCAT bus technology, with high speed, high precision, good stability, long hours 24 hours continuous operation. TKB1600 robot can be applied to almost all typical industrial applications, including: welding, spraying, grinding (polishing), machine loading and unloading, sorting and so on.

Easy to operate and programming:

Through the intuitive and friendly teaching pendant, robotics and arc welding process can be easily programmed and maintained. The teach pendant uses a popular PC graphical interface, no matter whether the robot is controlled or the specific process equipment,



PARAMETERS

Parameter Name Parameter Value
Type
articulated
Number of axes
6-axis
Function
  • loading
  • unloading
  • arc welding
  • sorting
  • for grinding
  • spraying
Mounting
floor-mounted
Other characteristics
compact
Payload (kg)
12 - 12
Reach (mm)
1412 - 1412
Operating temperature (°C)
0 - 45
Weight (kg)
160
