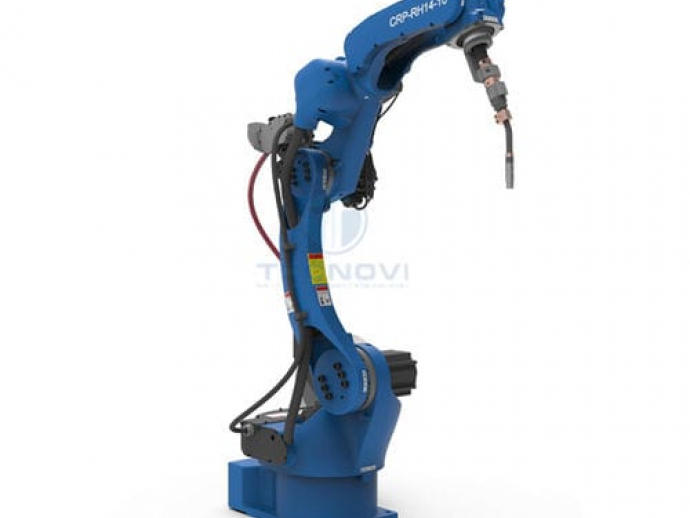

Robot công nghiệp (tầm vươn 1,4m) TEC-RH14-10-W
• · The wingspan is 1.4 meters. The design is highly compact and offers a choice of ground or inverted installations.
• · Large working space, fast running speed and high repeatability. It is suitable for welding, spraying, loading and unloading, handling, sorting, assembly and other applications.
• · Configure a safety emergency stop board independent of the control system, adopt a safe relay circuit, and provide dual-circuit emergency stop to ensure the reliability of emergency stop.
• · The main cable is a high-flexible robot-specific cable.
• · Built-in three-phase transformer, 380V and 200V for isolation, the power supply is more stable. Built-in three-phase filter to improve EMC and EMI performance.
• · The main body provides double circuit air pipe to meet the needs of welding and handling.
• · The 6-axis inner hole has an inner diameter of 46mm, which can meet the installation requirements of water-cooled guns and bellows guns.
• · Built-in high-flex welding cable.

Parameter Name	Parameter Value
Type	articulated
Number of axes	6-axis
Function	handling for assembly loading unloading for welding sorting for grinding marking spraying
Other characteristics	compact safety
Payload (kg)	10 - 10
Reach (mm)	1440 - 1440
Repeatability (mm)	0.08 - 0.08
