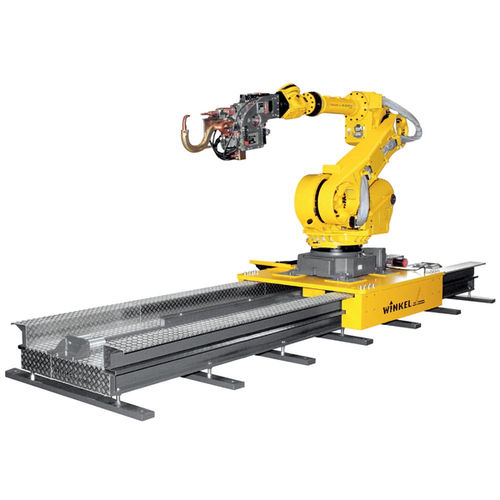

WINKEL RLE robot tracks are economical designed and built systems for load capacities up to 10 t robot weight and in combination of 6-axis robot with state of the art linear module.

RLE robot tracks are precise, hardened LM guides or with hardened flat bar with reduced backlash gear box.

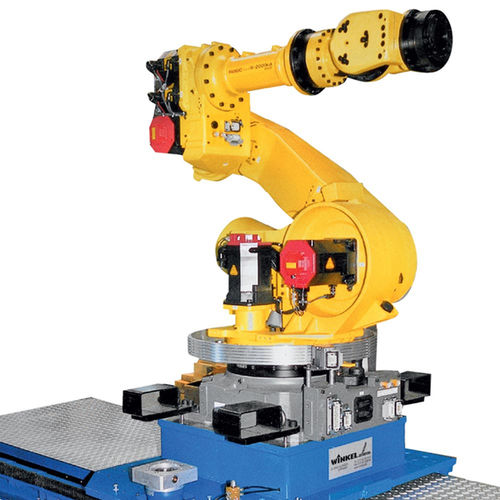

Suitable for all robot brands and applications. We deliver ready to mount with suitable robot base, reduction gear box and central lubrication system. Precise positioning achieved by LM Guide and stiff steel costruction. For use as floor track or portal version.

RLE robot axis are used for applications as

-handling robot
-machine tool chaining
-painting robots and welding robots.

Advantages WINKEL RLE robot-axis

-combination of 6-axis robot with state of the art linear module
-precise, hardened LM guides, or hardened flat bar
-with reduced backlash gear box
-high stiffness achieved by steel construction
-high flexibility in handling of parts
-excellent value for money

Technical datas robot tracks type RLE

-hardened, play free LM guides in size 35 - 65 or hardened flat bar

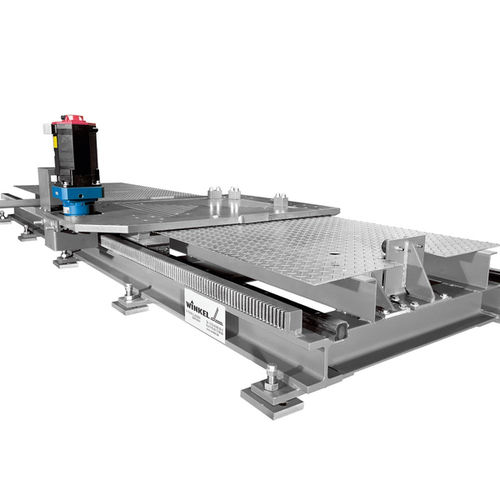

-hardened rack and pinion drive
-pinion for lubrication of the rack

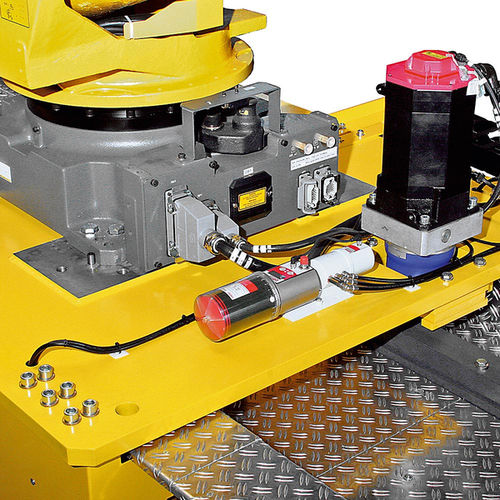

-central lubrication system for complete axis
-repeatability less ± 0.1 mm
-easy floor adjustment
-driving speed max. 5m/sec
-with covers on request

Parameter Name	Parameter Value
Type	articulated
Number of axes	6-axis
Function	handling for welding painting
Mounting	floor-mounted
Application domain	for machine tools
Payload (kg)	300 - 300
Reach (mm)	35 - 65
Repeatability (mm)	0.1 - 0.2
Speed (mm/s)	0 - 5000
