Articulated robot PULSE 90

Articulated robot PULSE 90

Articulated robot PULSE 90

About

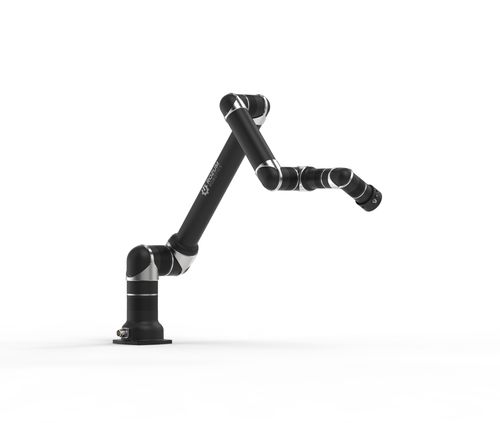

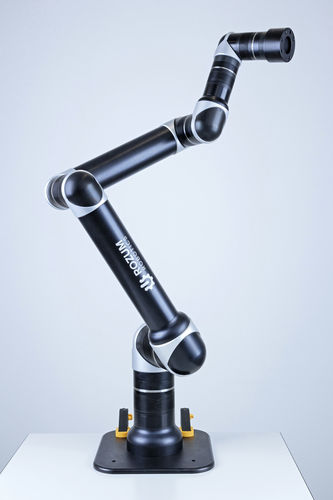

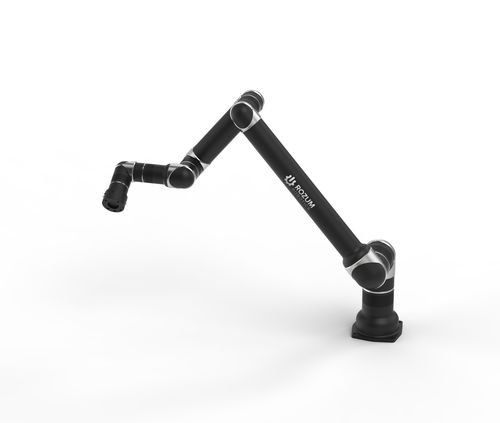

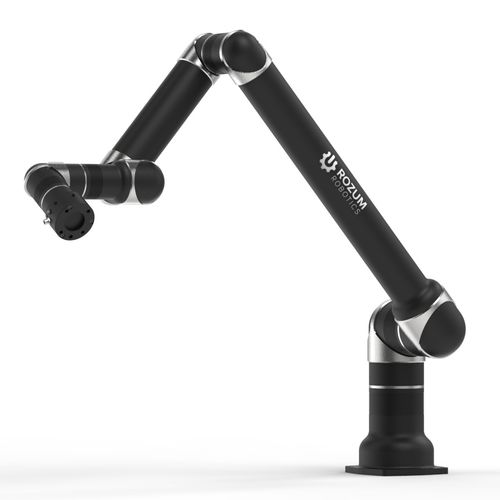

PULSE 90 by Rozum Robotics is a second generation model of Rozum Robotics arm-manipulators. The robo0t is capable of effective manipulation in repetitive tasks at various enterprises. At the same time, the arm is absolutely safe, doesn't require costly protective caging and is allowed to work in diret contact with a human.
Can boast extended reach and higher payload.



PARAMETERS

Parameter Name Parameter Value
Type
  • articulated
  • collaborative
Number of axes
6-axis
Function
  • for tool manipulation
  • for liquid handling
  • for assembly
  • injection
  • packaging
  • pick-and-place
  • palletizing
  • loading
  • cutting
  • unloading
  • painting
  • spraying
  • for welding
  • transfer
  • spark optical emission
  • test
Application domain
  • for medical applications
  • for the food industry
  • for the automotive industry
  • for the electronics industry
  • for the pharmaceutical industry
  • for the cosmetics industry
  • laboratory
  • for the beverage industry
  • for the wood industry
  • for laser applications
  • for teaching
Payload (kg)
4 - 4
Reach (mm)
900 - 900
Repeatability (mm)
0.1 - 0.1
