About

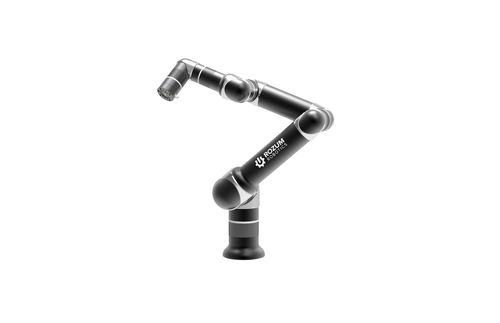

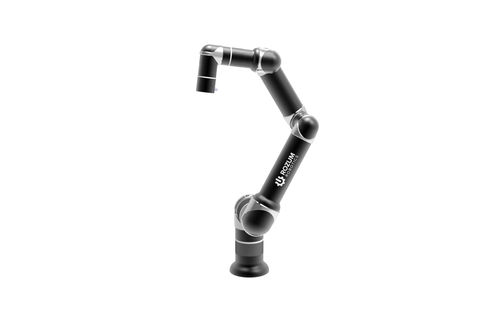

PULSE by Rozum Robotics is a new-generation, Industry 4.0 ready robotic arm.

It is a high-class cost-efficient manipulator intended to manufacturing enterprises of all sizes, makers and innovators, research institutions

lightweight (only 12.6 kg),
strong and dexterous (6 degrees of freedom, 4 kg payload, 750 mm reach)
precise (+/- 0.1 mm repeatability)



PARAMETERS

Parameter Name Parameter Value
Type
  • articulated
  • collaborative
Number of axes
6-axis
Function
  • for tool manipulation
  • for wafer handling
  • for liquid handling
  • for assembly
  • pick-and-place
  • palletizing
  • milling
  • TIG welding
  • loading
  • cutting
  • surface treatment
  • spraying
  • unloading
  • sorting
  • test
  • spark optical emission
  • MIG-MAG welding
  • machining
Mounting
mobile
Application domain
  • for the cosmetics industry
  • for the food industry
  • for the automotive industry
  • for the electronics industry
  • for the pharmaceutical industry
  • for medical applications
  • laboratory
  • for the beverage industry
  • for the wood industry
  • for teaching
  • for the plastics industry
  • for laser applications
  • for small parts
Other characteristics
  • high-speed
  • compact
  • low-noise
  • safety
  • autonomous
  • high-precision
Payload (kg)
6 - 6
Reach (mm)
750 - 750
Repeatability (mm)
0.1 - 0.1
