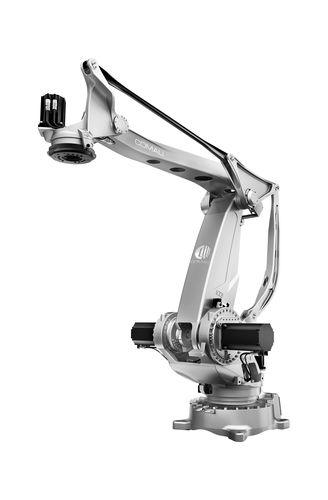

Handle with Speed

Specifically designed for palletizing, handling and high-speed operations, this innovative robot delivers performance levels that may even surprise you.

Technical specifications
Number of axes
4
Additional load on forearm (Kg)
25
Stroke (Speed) on Axis 1
+/- 180° (120°/s)
Stroke (Speed) on Axis 2
-49° / + 95° (100°/s)
Stroke (Speed) on Axis 3
-68° / - 208° (110°/s)
Stroke (Speed) on Axis 4
-
Stroke (Speed) on Axis 5
-
Stroke (Speed) on Axis 6
+/- 2700° (280°/s)

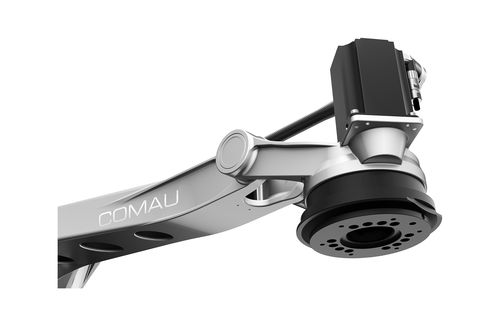

Tool coupling flange
ISO 9409 - 2 - 200 - 6 - M12
Protection class
IP65
Mounting position
Floor / Shelf
Operating Areas A (mm)
3147
Operating Areas B (mm)
3099
Operating Areas C (mm)
952
Operating Areas D (mm)
1182

Parameter Name	Parameter Value
Type	articulated
Number of axes	4-axis
Function	handling palletizing
Mounting	floor-mounted shelf
Protection level	IP65
Other characteristics	high-speed
Payload (kg)	180 - 180
Reach (mm)	3100 - 3100
Repeatability (mm)	0.1 - 0.1
Weight (kg)	1,213
