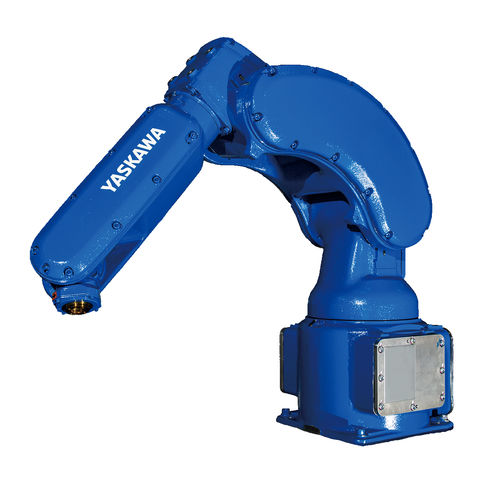

Articulated robot MPX1150

Articulated robot MPX1150

Articulated robot MPX1150

About


Overview

The compact MOTOMAN MPX1150 robot was developed especially for painting of small workpieces. It provides a payload of 5 kg for mounting multiple guns and small bell models. Teh very compact design helps keeping the size of the paint booth small. The S/L axis is designed with no offset to enable installation of the manipulator closer to a work piece. The robot can be mounted on the floor, wall or ceiling and has three selectable access points for power cables.



PARAMETERS

Parameter Name Parameter Value
Type
articulated
Number of axes
6-axis
Function
painting
Mounting
  • floor-mounted
  • ceiling-mount
  • wall-mounted
Other characteristics
compact
Payload (kg)
5 - 5
Reach (mm)
0 - 727
Repeatability (mm)
0.02 - 0.02
