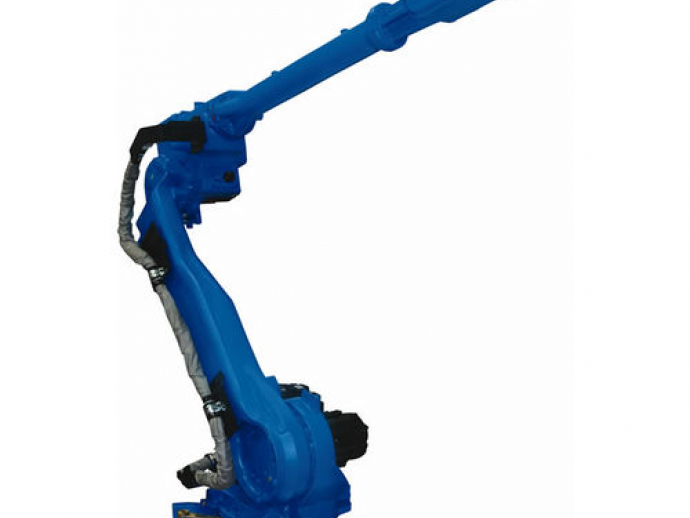

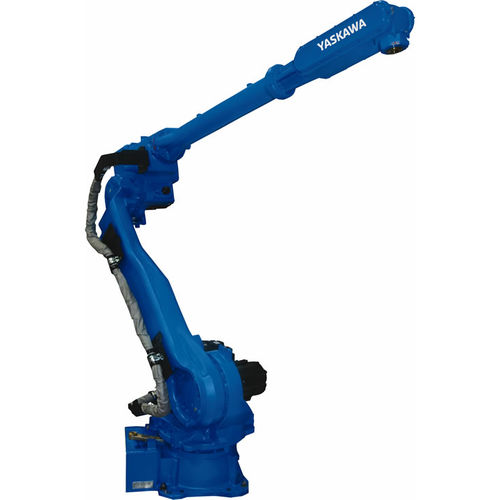

Powerful, high-speed robot with long/extended articulated arm offers superior performance in arc welding, coating, dispensing, material cutting and handling applications. Wide work envelope with small interference zone allows robot to be placed close to workpieces and equipment which reduces required floorspace.

•Powerful, high-speed robot with long/extended reach offers superior performance in arc welding, coating, dispensing, material cutting and handling applications.
•Wide work envelope with small interference zone allows robot to be placed close to workpieces
and equipment which reduces required floorspace.
•Highly reliable, six-axis robot features high-rigidity speed reducers and high-speed motion which reduce cycle times.
•High payload, moment and inertia ratings allow this robot to handle vision, laser tracking or other sensors for seam tracking applications.
•Cables and air lines are routed through robot base to upper arm to increase cable life, enhance safety and reduce teaching time.

•Cable installation tube in robot base facilitates fieldbus routing to the upper arm and/or gripper.

•The MH50II series robots can be floor-, wall- or ceiling-mounted. Brakes on all axes.
•Mounting for peripheral equipment is provided in multiple locations to make integration easier.
•The MH5011-20 robot features an IP67-rated wrist and an IP54-rated body.

Parameter Name	Parameter Value
Type	articulated
Number of axes	6-axis
Function	handling cutting arc welding dispensing
Mounting	floor-mounted ceiling-mount wall-mounted
Other characteristics	high-speed safety
Payload (kg)	20 - 20
Reach (mm)	3106 - 5585
Repeatability (mm)	0.15 - 0.15
