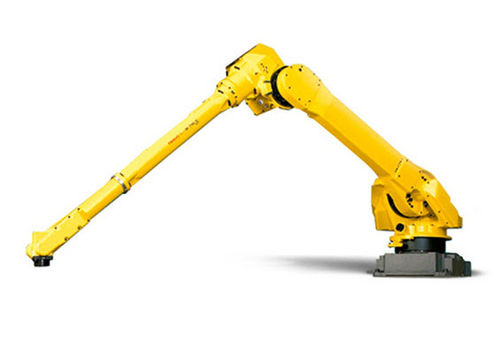

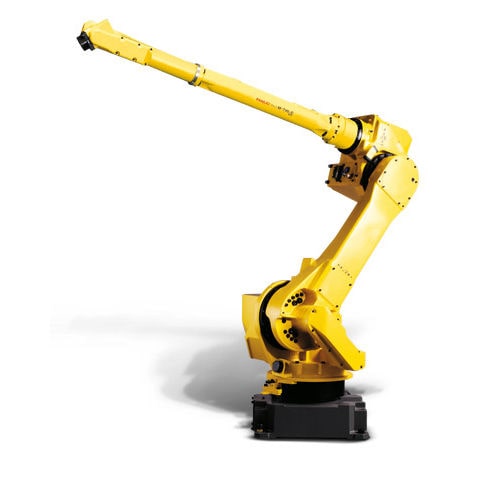

This innovative series of lightweight robots features a slim wrist, rigid arm and small footprint. High axis speeds make it extremely fast. This particular model will handle lighter payloads within a large operating envelope. It is especially popular for applications such as machine tending, grinding, polishing, deburring, water jet cutting and washing

Parameter Name	Parameter Value
Type	articulated
Number of axes	6-axis
Function	handling machine tending for welding spot welding arc welding laser welding cutting deburring grinding washing
Mounting	floor-mounted ceiling-mount wall-mounted
Protection level	IP54, IP67
Other characteristics	compact high-speed
Payload (kg)	20 - 20
Reach (mm)	3110 - 3110
Repeatability (mm)	0.06 - 0.06
Operating temperature (°C)	0 - 45
Noise level (dB)	71 - 71
Weight (kg)	540
