About

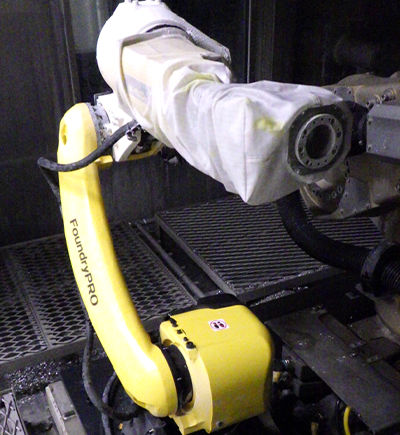

The new M-10iD/12 dustproof robot comes with IP67 motor covers, epoxy paint and a cover that protects the J6 arm from dust and liquid. Perfect for applications in the forging, metal castings, ceramic industries, this highly versatile robot gives a full working envelope, reach and stroke for higher production throughput.
Dustproof version
The M-10iD/12 dustproof robot offers IP67 protection for all its axes, epoxy paint, antirust bolts and a wrist cover as standard. Thanks to that, this model is ideally suited to harsh environments.
Wrist cover
The wrist cover is equipped with a stainless steel flange that keeps the cover stable, providing more protection not only from dust and small particles, but also against water.
The specialist for low payload material handling
Diminished cycle time - higher productivity owning to the M-10's very rigid hollow arm and advanced servo technology for increased acceleration performance.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
articulated
|
| Number of axes |
6-axis
|
| Function |
handling
|
| Mounting |
|
| Application domain |
for harsh environments
|
| Protection level |
IP67
|
| Payload (kg) |
12 - 12
|
| Reach (mm) |
1441 - 1441
|
| Repeatability (mm) |
0.02 - 0.02
|
| Operating temperature (°C) |
0 - 45
|
| Noise level (dB) |
70 - 70
|
| Weight (kg) |
145
|
