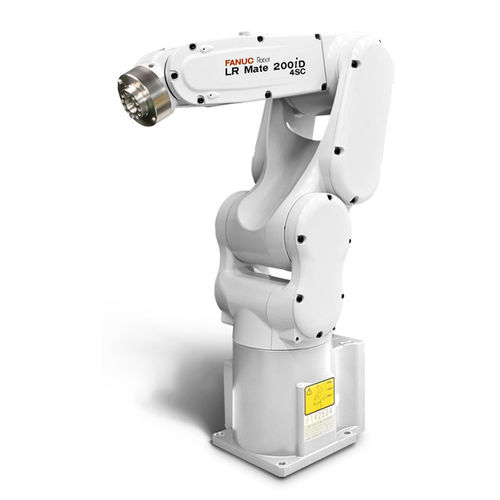

This versatile 6 axis short arm mini robot has a 4 kg payload. Easy to integrate into confined spaces, it has been designed specifically for high-speed pick, place and assembly applications in clean room and food environments. Like other LR Mate robots, it is available with a range of options including integrated intelligent vision & force functionality.

Ideal for clean room and food environments

Especially made for clean room applications, this model featuring clean room class 10 is your highly productive solution for smaller payloads and envelopes .

Lightweight and fast

this model can be installed anywhere. Powerful servo motors giving high acceleration and short cycle times thus improving your productivity.

Various optional features available

Including intelligent iRvision (integrated vision) and force sensing.

Parameter Name	Parameter Value
Type	articulated
Number of axes	6-axis
Function	for assembly pick-and-place
Application domain	for the food industry for the pharmaceutical industry for clean rooms
Protection level	IP67
Other characteristics	high-speed compact
Payload (kg)	4 - 4
Reach (mm)	550 - 550
Repeatability (mm)	0.013 - 0.013
Operating temperature (°C)	0 - 45
Noise level (dB)	65 - 65
Weight (kg)	20
