About

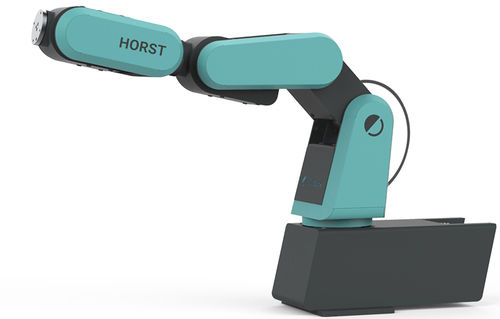

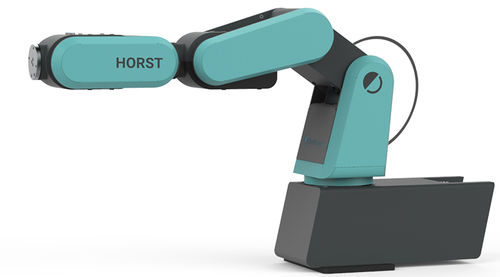

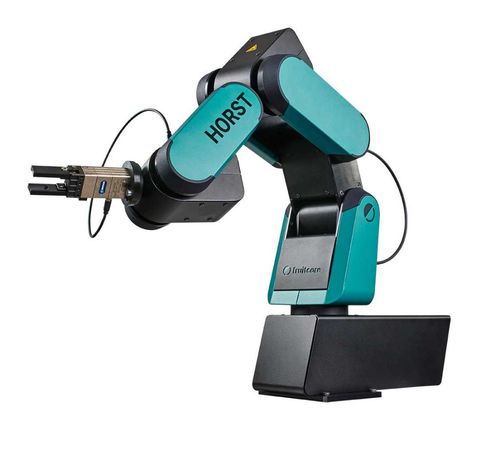

HORST600 combines easy operation and performance with compact design. This allows optimal maneuverability in the largest possible workspace and offers you maximum flexibility.
HORST can do it. Compact, fast, and precise.

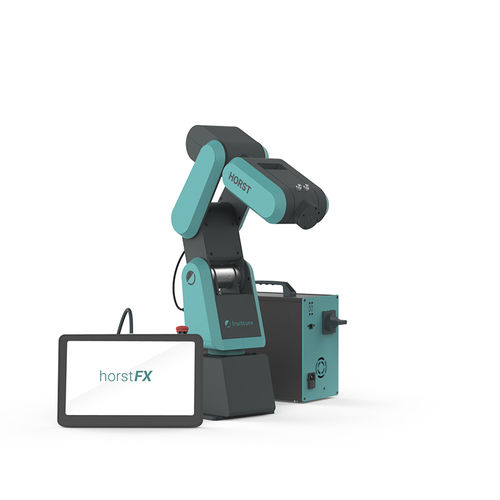

HORST is the ideal choice for the metal and plastics processing industries, medical and testing industries and is highly versatile. Simplicity and performance, as well as industry-specific features, make HORST600 your robot of choice. The HORST600 robot system comprises the 6-axis industrial robot HORST600, the switch cabinet horstCONTROL, as well as the robot operating panel horstPANEL and our operating software horstFX basic.
Whether floor or ceiling, HORST600 can be installed exactly to your requirements and is highly versatile. With a weight of around 30 kg, it is lightweight and with a repeatability of +/- 0.05 mm extremely precise.
HORST600 is ideally suited for handling a wide variety of components in a wide range of applications.
All our robots are made in Germany. This means for you: high-quality Digital Robots and increased efficiency for your production processes.Not the right features? See all robots.
Your advantages with our Digital Robot
Simple operation
Optimal cost-benefit ratio for your application
Can be used in almost all industrial sectors
Digital Robots: simplicity through connectivity at all stages of life – from inital installation and connection to operation, maintenance, and repair.
Little space required, large workspace
High repeatability
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
articulated
|
| Number of axes |
6-axis
|
| Function |
handling
|
| Mounting |
|
| Application domain |
|
| Protection level |
IP54
|
| Other characteristics |
compact
|
| Payload (kg) |
3 - 3
|
| Reach (mm) |
584 - 584
|
| Repeatability (mm) |
0.05 - 0.05
|
| Operating temperature (°C) |
5 - 40
|
| Weight (kg) |
30
|
