Overview

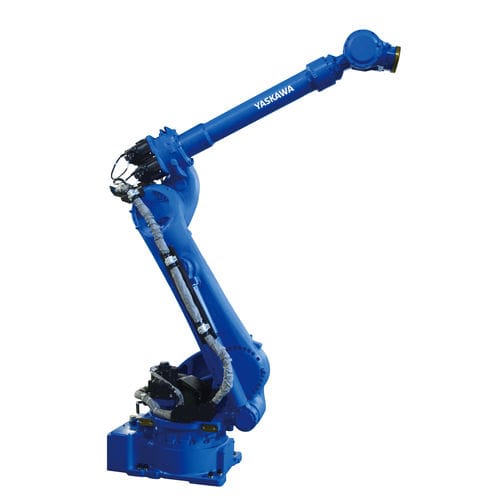

The MOTOMAN GP180-120 handling robot provides a very long reach of more than 3 meters, a max. payload of 120 kg and an excellent repeatability precision of +/- 0,05 mm.

The GP180-120 is a long-arm version of the GP180, providing fast and accurate performance to boost productivity for high-payload handling applications. Featuring a wide work envelope, this robot uses a streamlined upper arm for easy access to parts in confined spaces. While the wide wrist motion range reduces interference with fixtures, the reduced interference design enables close proximity placement of robots. A heavy mechanical balancer is not required any more, and latest high performance Sigma7 servo drive technology is leading to fast axis speeds and powerful acceleration. A wrist with high moment and inertia ratings enables the GP180-120 robot to efficiently handle larger and heavier payloads for superior performance. In combination with a robot track, this robot is a perfect solution to feed large panels between different machines or workcells.

The GP180-120 is perfect for a wide variety of applications, such as Material Handling of larger parts/panels, (Remote) Laser Welding, Spot Welding, Press Tending.

Parameter Name	Parameter Value
Type	articulated
Number of axes	6-axis
Function	handling spot welding laser welding
Mounting	floor-mounted
Payload (kg)	120 - 120
Reach (mm)	0 - 3058000000000
Repeatability (mm)	0.2 - 0.2
