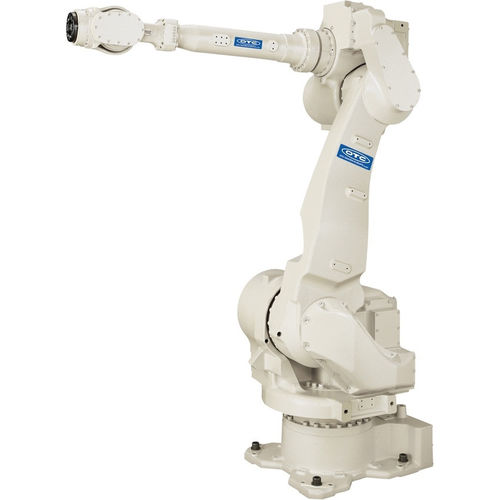

For handling of medium loads: FD-V50
The FD Robot series for Production and Handling applications offers several advantages: They fulfill their functions at high speed and accuracy.They are suitable for Grinding and Milling. Also applications like Palletizing and Spraying are possible. The total highspeed automation enables a significant increase of productivity.

Surface area: minimal surface area at maximum working range
Avoiding collisions: interference detection sensitivity improved (at 40 % better compared to previous model)
Built-in cable storage: optimally protected, neat cable layout preventing cable from getting caught during robot operation
Protection class: improved protection class IP67 on request

Parameter Name	Parameter Value
Type	articulated
Number of axes	6-axis
Function	handling palletizing for production for grinding milling spraying
Protection level	IP67
Other characteristics	high-speed high-precision
Payload (kg)	50 - 50
Reach (mm)	2050 - 2050
Repeatability (mm)	0.07 - 0.07
Operating temperature (°C)	0 - 45
Weight (kg)	640
