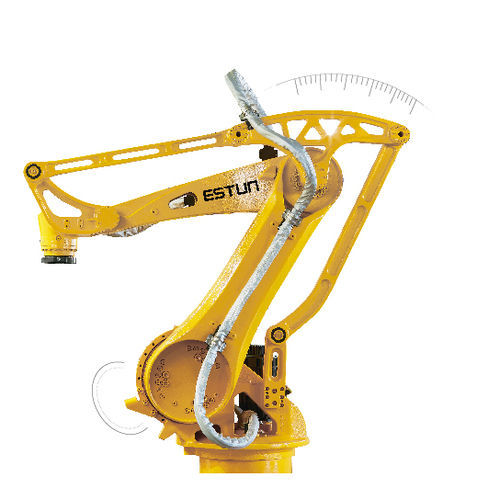

Articulated robot ER60-2000-PL

Articulated robot ER60-2000-PL

Articulated robot ER60-2000-PL

About


ESTUN palletizing sériés industrial robots are spécial high-speed palletizing robots with unique structure in the industry.
Compared with traditional palletizing robots, the new body structure design, unique single pôle and more advanced nitrogen cylinder structure have smaller width and weight. The body is more compact, occupies less land, is lighter, effectively reduces energy consumption and improves running speed, It is the preferred high-speed palletizing solution in the intelligent packaging palletizing industry.

I Efficient performance and high running beat
I J1 joint hollow design
I Professional palletizing software package
I High speed beat, stable opération and high précision



PARAMETERS

Parameter Name Parameter Value
Type
articulated
Number of axes
4-axis
Function
  • packaging
  • palletizing
Mounting
floor-mounted
Protection level
IP54
Other characteristics
  • compact
  • high-speed
Payload (kg)
60 - 60
Reach (mm)
2000 - 2000
Repeatability (mm)
0.04 - 0.04
Weight (kg)
500
