About
ESTUN universal super large load sériés products are widely used in material handling applications in building materials,home furnishings, ceramics, lithium batteries, photovoltaic, auto parts and other industries. This sériés of robots have super large load capacity and super long action range. Support offline programming, simulation, remote opération and maintenance software, visual inspection, additional axis and other supporting functions.
Super large load series
Excellent performance
High rigidity

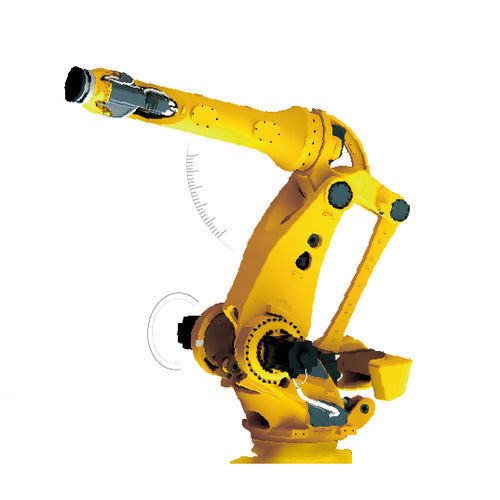

SUPER LARGE LOAD SERIES ROBOT
I High rigid body structure
I Powerful motor provides greater load and inertia
I Long arm exhibition is suitable for a variety of scenes
I Autonomous dynamics algorithm runs stably
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
articulated
|
| Number of axes |
5-axis
|
| Function |
handling
|
| Mounting |
floor-mounted
|
| Protection level |
IP54
|
| Other characteristics |
autonomous
|
| Payload (kg) |
350 - 350
|
| Reach (mm) |
3300 - 3300
|
| Repeatability (mm) |
0.1 - 0.1
|
| Weight (kg) |
2,940
|
