High Productivity – High Quality – Zero Mistake – %100 Worker Safety

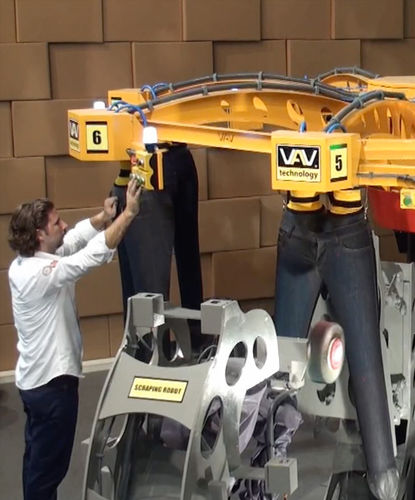

Non Stop Production With 8 Mannequins Carousel System
Sustainable Production Standard


Da Vinci OB48 is a creation of our long term experience in Robotic Technologies.

Clone Mac copying system is the most important factor for the success of this project Spraying expert can easily teach the work to the robots without holding the robotic arms.

Da Vinci OB48 is the only process that leads to operate the machines with unskilled workers.

Operators are only dressing up the mannequins.

1 or 2 operators per shift – 5.000/5.500 trousers / day.


High productivity and efficiency for all spray Implementation.

Robotic arms have capability of imitating human hand. One spray gun over each robotic arms.

Reducing chemical cost by chemical spray amount control with high sensitive flow meter up to 1gr. of material.

Each gun is spraying same amount of chemical every time.

You can spray all water based chemicals.

Health friendly production with water curtains and compatibility to high power air suction system.

Fast production. 4 Mannequins can be loaded while other for in spraying process.

Less labor cost and energy consumption with robotic arms technology.

No labor mistake, No b choice products. Standardization with high precision recording method.

The key of the system is the recording method. There is an independent module for recording called Clone – Mac 10AX AN Version. It exactly clones your best spray worker. One recording module is enough to serve many Da Vinci OB48 spray robot machines. Da Vinci OB48 makes STANDARDIZATION in wet process. Hundreds thousands of jeans with identical.

Parameter Name	Parameter Value
Type	articulated
Function	spraying
