Our cobot's intelligent interactive panel and compact design will help stand out from competitors

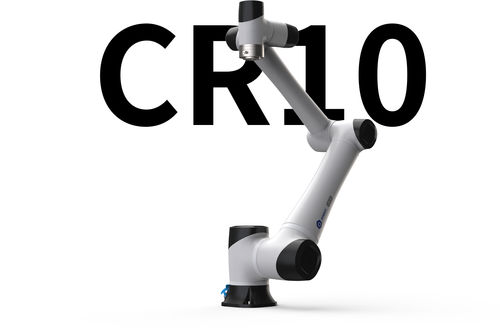

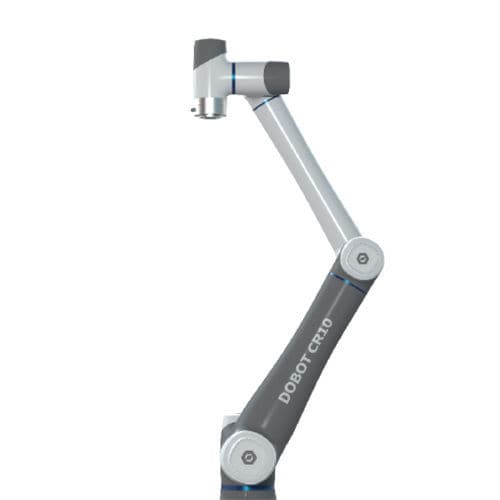

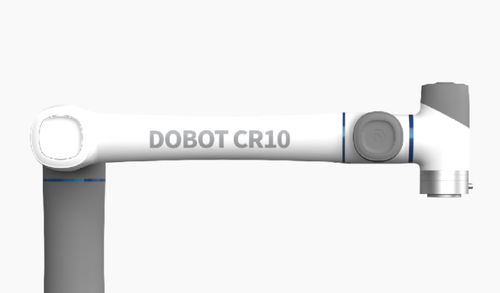

CR10 Robotic Arm: Fits Rich Industrial Taste The versatile easy-to-use cobot can improve efficiency of manufacturing lines by providing a wide range of features perfect for various applications,including palletizing, loading and unloading, etc.
Rated Voltage - DC48V
Joint Ranges -
J1 - ±360°
J2 - ±360°
J3 - ±160°
J4 - ±360°
J5 - ±360°
J6 - ±360°
Maximum Speed of Joints -
J1/J2 - 120° /s
J3/J4/J5/J6 - 180° /s
End-Effector I/O Interface -
DI/DO/AI - 2
AO - 0
Communication Interface -
Communication - RS485
Controller I/O -
DI - 16
DO/DI - 16
AI/AO - 2
ABZ Incremental Encoder - 1
Communication - TCP/IP, Modbus, WIFI
IP Rating - IP54
Power - 350W
Materials - Aluminum alloy, ABS plastic
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Number of axes |
6-axis
|
| Function |
|
| Mounting |
floor-mounted
|
| Other characteristics |
compact
|
| Payload (kg) |
10 - 10
|

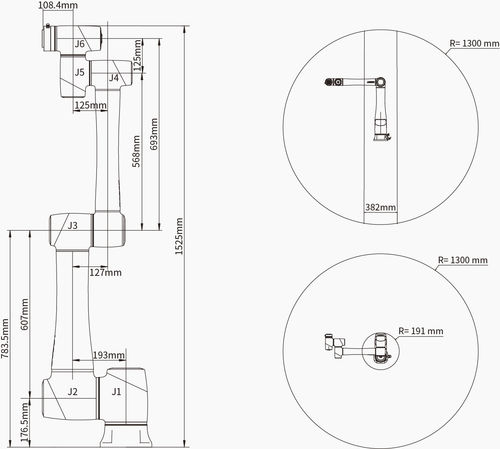

| Reach (mm) |
1300 - 1525
|
| Repeatability (mm) |
0.03 - 0.03
|
| Speed (mm/s) |
4000 - 4000
|
| Operating temperature (°C) |
0 - 45
|
| Weight (kg) |
40
|
