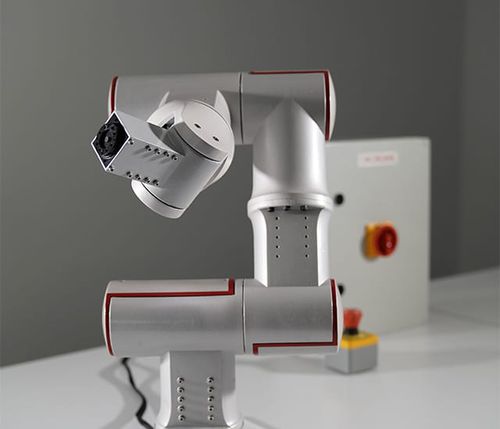

ACROME Acrobot is a robot-arm system with custom joint options to be used as a test bed for collaborative robotics, intelligent control systems, and Industry 4.0.

OVERVIEW
ACROBOT 6-DOF Robot Arm, with its high technology joint actuators, is a hands-on experiment, closing the gap between real industrial systems and DIY- approach. Users can understand the complex inverse kinematics algorithms and quickly prototype new motion control architecture for industrial parallel kinematics robots. ACROBOT enables the students and researchers to design complex applications and gives them access to the world of industry 4.0. Completely open source software makes it possible that researchers can modify and test their developed algorithms.

SOFTWARE OPTIONS
LabVIEW, Real-Time (optional), FPGA (optional)
MatLab/Simulink
PLATFORM OPTIONS
Local PC (Windows)
Digital-Twin

FEATURES
Assembled 6 DOF serial kinematic arm robot
Aluminum Cast Joint Structure
Every joint has a high resolution absolute encoder after gear reduction. +/- 0.1 mm repeatability
Actuating the robot by high precision smart servo actuators (3.5 – 4.5 arcmin backlash)
2 kg payload at maximum reach. 960 mm workspace
Position, velocity, and torque (Electrical current sensing) can be controlled
Fully compatible with MATLAB®/Simulink® and LabVIEW™
Denevit-Hartenberg convention model for serial kinematic arm robot in MATLAB®/Simulink® and LabVIEW™
Enables users to create their own real-time algorithms
Open source software architecture with extensive courseware, suitable for undergraduate and graduate courses of robotics and control systems

Parameter Name	Parameter Value
Type	articulated collaborative parallel
Number of axes	6-axis
Function	test
Application domain	applications
Other characteristics	custom
Payload (kg)	2 - 2
Reach (mm)	960 - 960
Repeatability (mm)	0.1 - 0.1
