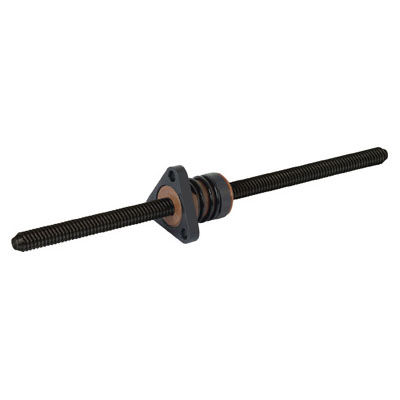

Anti-backlash lead screw WDG Series

Anti-backlash lead screw WDG Series

Anti-backlash lead screw WDG Series

About

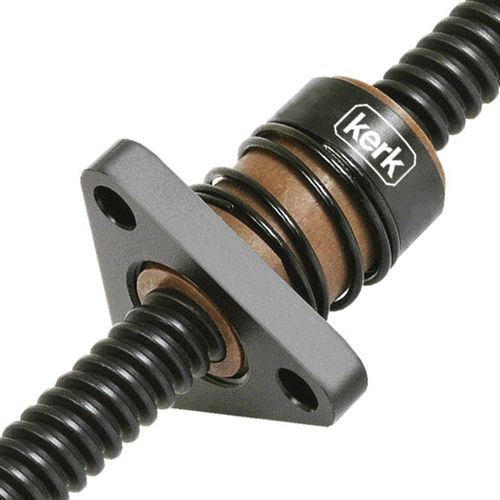

The WDG series utilizes a backlash-free acme lead screw that provides stiffness, and a balanced precision in positioning. The unit is designed with a wedge structure, that locks the nut at the proper preload.

The device features a compensation mechanism, for the accommodation of nut wear and momentary overload. This compensation method ensures the positional accuracy in different operations. It is available in smaller assemblies, while still maintaining the stroke length.



PARAMETERS

Parameter Name Parameter Value
Type
anti-backlash
Material
stainless steel
Other characteristics
with nut
Diameter (mm)
4 - 13
