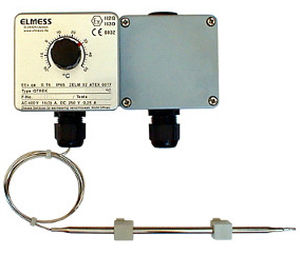

Ex Thermostat / Temperature Limiter
The Thermostat serves for limiting, monitoring or control of room temperatures, medium or surface temperatures within hazardous areas of categories 2 or 3.
Current rating 16A
Type DSTR60ALD
With fixed temperature 5 / 10 / 15°C
For simple control of the room temperature (e.g. frost protection) in explosion hazardous areas.
Design with fix mounted 2m connection cable.
Type DSTRALD Mounting Kit
Thermostat Type DSTR60ALD/0...+100-T6 as mounting kit for ELMESS finned tube heaters R4.
Type DSTR60ALE with Immersion Pipe
Ex temperature controller for controlling the gas temperature inside a pipe.
Mainly gas pressure control facilities with electric pre-heaters are used where the gas temperature behind the control valve is supposed to be controlled in a simple way.
Options:
- Thermostat with turning knob or with hidden adjustment
- Ex safety temperature limiter type DSTB60AL.
- Execution for Zone 21 and 22
- Execution Ex ib
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Display |
analog
|
| Protection level |
|
| Other characteristics |
for hazardous areas
|
| Maximum temperature (°C) |
-40 - 290
|
