The instrument displays with dual row 3-digit numeric tube, with a variety of RTD/TC input signal types optional with an accuracy of 0.3%; 5 sizes optional, supporting 2-way alarm functions, with analogue control output or switch control output function, under accurate control without overshoot.

Features

5 types of dimensions available;

Standard snap-in installation;

Power supply: AC/DC100~240V (AC/50-60Hz) Power consumption≤5W; DC 12~36V Power consumption≤3W

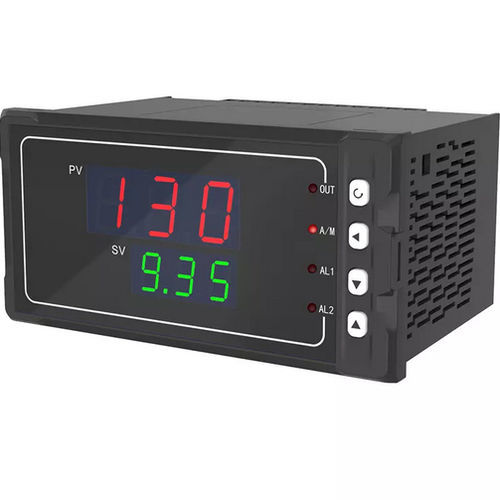

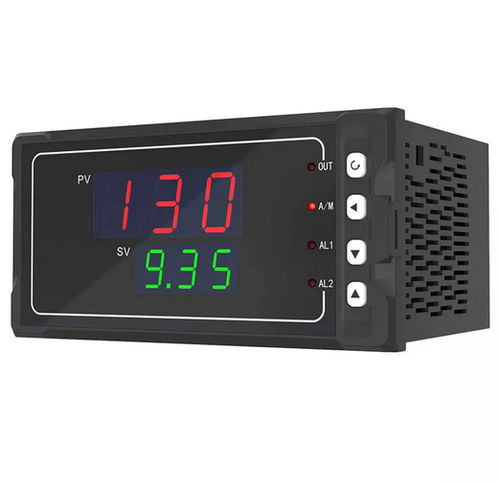

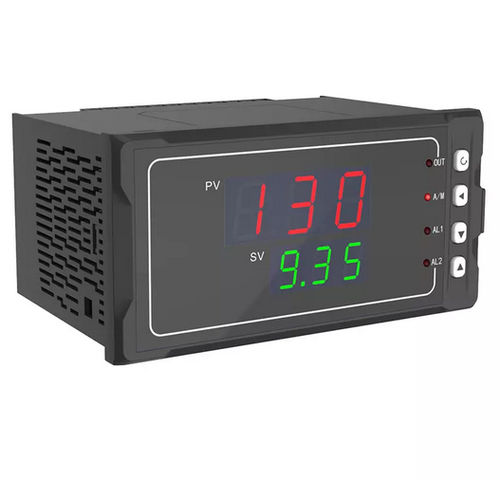

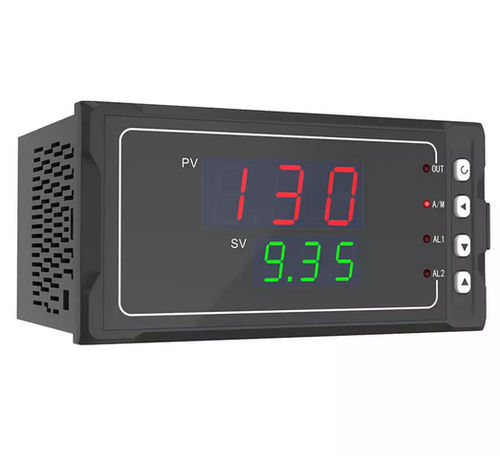

Product - Economic 3-digit Display Fuzzy PID Temperature Controller
Model - SUP-130T
Dimension - C. 96*96*110mm
D. 96*48*110mm
E. 48*96*110mm
F. 72*72*110mm
H. 48*48*110mm
Measurement accuracy - ±0.3%FS
Transmission output - Analog output----4-20mA(RL≤500Ω)、1-5v（RL≥250kΩ）
Alarm Output - With upper and lower limit alarm function, with alarm return difference setting；Relay contact capacity：
AC125V/0.5A(small)DC24V/0.5A(small)（Resistive load）
AC220V/2A(big)DC24V/2A(big)（Resistive load）
Note: When the load exceeds the relay contact capacity, please do not directly carry the load
Power supply - AC/DC100~240V (AC/50-60Hz) Power consumption≤5W
DC 12~36V Power consumption≤3W

Economic 3-digit Display Fuzzy PID Temperature Controller is in modular structure, easily operable, cost-effective, applicable in light industry machinery, ovens, laboratory equipment, heating/cooling and other objects in the temperature range of 0~999 °C.The instrument displays with dual row 3-digit numeric tube, with a variety of RTD/TC input signal types optional with an accuracy of 0.3%;

Parameter Name	Parameter Value
Display	with LED display analog
Type	PID
Protection level	standard
Use	heating cooling laboratory
Other characteristics	4-20 mA modular 2-way
Maximum temperature (°C)	-10 - 50
