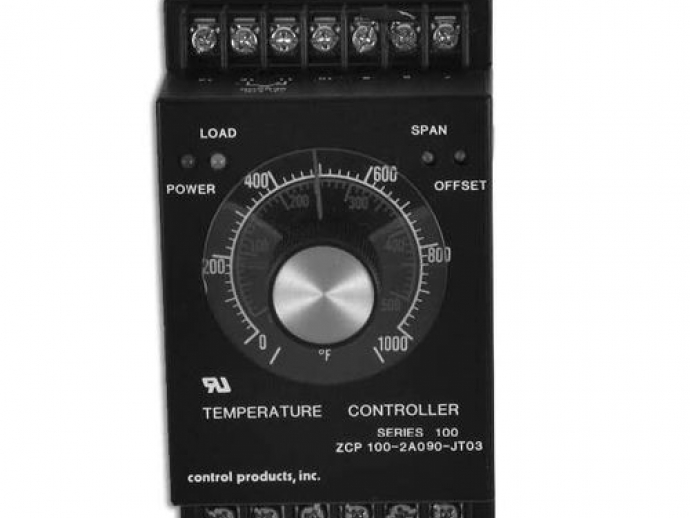

The Series 100 controller was designed for general purpose commercial and industrial temperature regulating applications.The latest solid state technology and an innovative modular packaging concept has produced a uniquely flexible family of controllers. Low cost, a choice of many standard features and fast delivery make this series of controllers equally attractive to both the OEM and the end users.

Features
•120/240 VAC power input
•Power and load lamps
•Adjustable span and offset
•Adjustable bandwidth or hysteresis
•Process and setpoint display capability
•Triac output
•Proportioning
•24 V to drive solid state relay
•Designed to UL and CSA standards

Specifications
•Power Input: 115/230VAC±10%, 50/60Hz (field selectable); 24VAC±10% optional
•Sensor: Thermocouple, type J
•Setpoint Range: 0°F to 1000°F
•Control Modes:Proportioning with adjustable Bandwidth (1°C to 10°C) and cycle rate of 2 sec for Triac or 10 sec for Relay outputs
•Setpoint Adjustment: Local Potentiometer
•Control Accuracy: Typically better than 0.5% of range
•Control Stability: Typically better than ±1°C with ±10°C change in ambient temperature or ±10% change in line voltage
•Sensor Fault Protection: Open sensor causes output to de-energize (Thermocouple)
•Operating Ambient Temperature: 0°C to 55°C (32°F to 130°F)

Parameter Name	Parameter Value
Display	analog
Type	programmable
Use	industrial
