TIJNV/TUNC are used with automatic control systems (BMS, PLC, PC) that provide a 0-1 OV or 0-20mA signal for controlling variables such as temperature, speed, position etc.

Contact Sl-S2 is closed in position "AUTO".

In automatic mode ("AUTO") the analogue signal from the control system (terminals YR & L) is re-transmitted to the controlled device (ratio 1:1, terminals Y & I).

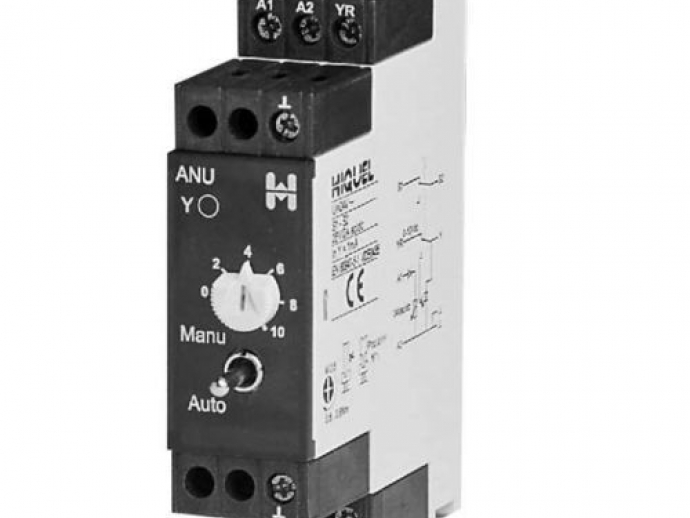

In manual mode ("MAN") the analogue signal from the control system is isolated and the ANU/ANI inject a signal (terminalsY & ) which can be adjusted from 0 to IOV or 0-20mA by the
The brightness of the LED "Y" is proportional to the output signal level.

The brightness of the LED “Y” is proportional to the output signal level.

• supply voltage 24V~=
• feedback contact for manual or automatic mode
• short circuit protection
• LED indicator proportional to output level

Parameter Name	Parameter Value
Signal type	analog
Other characteristics	DIN rail
