The TPIs extra slim series is specially designed for the measurement of industrial signals (process, temperature, resistance, frequency…) which can either operate independently and autonomously or be interconnected in a local network.

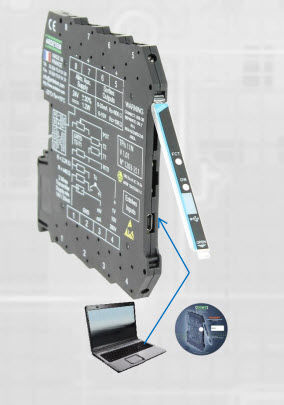

Easy programmable by µUSB plug on the front face or quick configuration by µSwitches for the version S.

TECHNICAL SPECIFICATIONS

Universal input: mA,mV,V,TC,PT100,resistance,…
Accuracy: 0.1%
Typical response time: 150 ms
Scale factor programmable
Isolated analog output: voltage or current
Isolation between input/output/supply: 2 kV 50 Hz 1 mn
Power supply: 24 VDC +/- 30%
Width of the housing: 7.2 mm
For DIN rail mounting

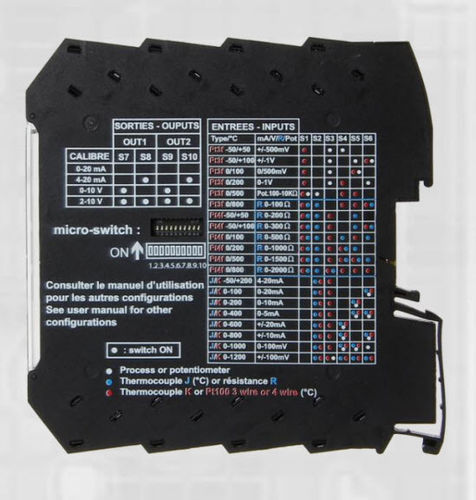

Configurable by switches

Parameter Name	Parameter Value
Signal type	analog universal
Other characteristics	DIN rail
