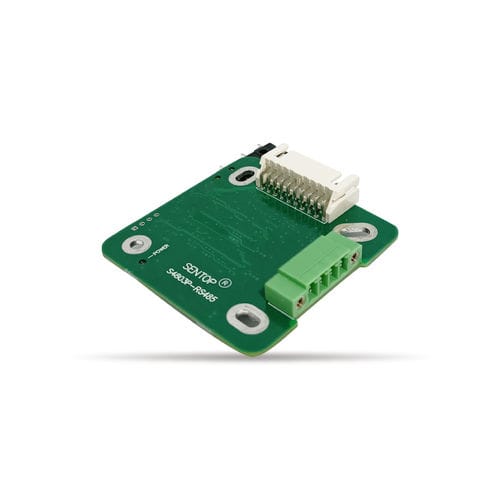

S4803P-RS485 Series Signal Converter

- 6 analog channels
- 10 switch channels
- RS-485
- Modbus RTU

General Mechanical Specifications

- Protection degree：IP20
- Installation mode：Screwmount
- Housing material：Plastic

Environmental Specifications

- Operating temperature range： -40℃~+85℃
- Storage temperature range：-40℃~+85℃

General Electrical Specifications

- Applied voltage：8～32V
- A/D conversion resolution：16bit
- Communication interface：RS-485
- Communication protocol：Modbus RTU
- ESD durability：（Contact discharge）±8KV，（Aerial discharge）±15KV，EN61000-4-2:2009
- EMS durability：10V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，EN61000-4-3:2006+A1:2010

For other special requirements, please contact us at trade1@sakae.cn

Parameter Name	Parameter Value
Signal type	analog
Associated function	decoder splitter indicator
Other characteristics	RS485 multi-function for rotary encoders for potentiometers
